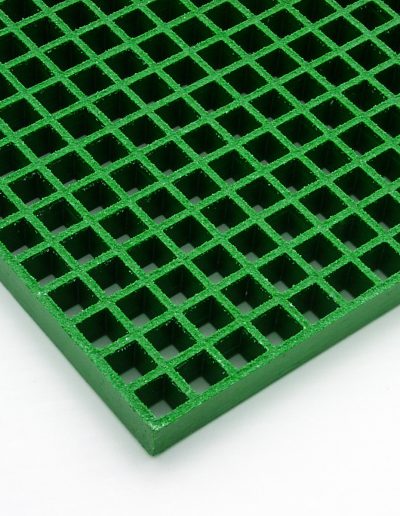

Grating Molded Green

SUPERGRATE® Molded Grating

Supergrate® Molded Grating and stair tread are ideal for highly corrosive applications, is lightweight and easy to fabricate. It’s bi-directional load-bearing design - load-bearing bars in two directions - makes it perfect for applications requiring large cut-outs for pipe, duct and electrical penetrations.

Applications

  • Walkways
  • Stairs
  • Platforms
  • Trenches
  • Catwalks
  • Guards for Electrical Equipment and Machinery
  • Ramps
  • Boat Docks

Supergrate Molded Grating Specs:

  • Thickness: 1”, 1-1/2” and 2”
  • Grids Patterns: Square Patterns – 1-1/2” x 1-1/2” and 2” x 2”
  • Rectangle Pattern: 1” x 4”
  • Panels Sizes: Various Sizes
  • Antiskid Top Surfaces: Grit Top – epoxy bonded quartz aggregate
  • Meniscus: (half- moon cross section)
  • Colors: Yellow, Dark Gray, Green, and Light Gray
  • Resin System: Isophthalic Polyester Fire Retardant
  • Vinyl Ester Fire Retardant

Fire Retardant molded fiberglass grating products perform to a Class 1 Fire Rating of 25 or Less Per ASTM E-84 and are self-extinguishing per ASTM D-635.

Special resins, colors, and lengths are available.

Molded Fiberglass Grating Stair Treads

Treads are fully gritted and have double-sided yellow gritted nosing. We can supply individual threads to customers' specifications.

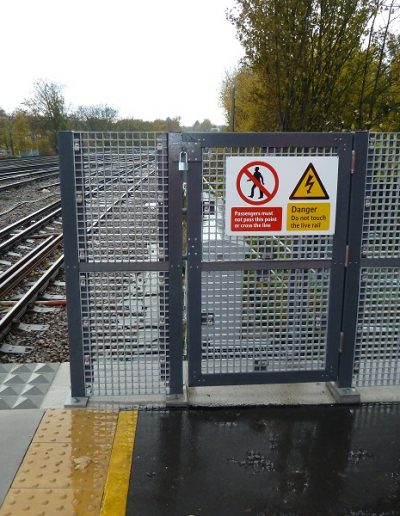

End of Line Gate

Standard panel sizes:

  • 1-1/2” Thick x 1-1/2’ x 1-1/2” Square Mesh in 22-1/2” wide x 12’ long panels
  • 1-1/2” Thick x 1-1/2’ x 1-1/2” Square Mesh in 28-3/4” wide x 12’ long panels

A standard line of panel hold-down clips, panel connectors, elevated grating pedestals, curb angle and other grating support systems are available. Solid-covered grating, slip resistant, flat plate and stair tread covers can be supplied to meet your needs. We can be your one point of contact for molded grating and panels.

Advantages of Molded Grating

There are many advantages to choosing molded FRP gratings over alternative grating systems, such as:

  • One-piece construction: The molding process allows fiberglass gratings to be fabricated as one-piece systems, which results in enhanced strength and sturdiness. Due to their bidirectional load-bearing design, molded grating systems can also handle much higher loads than other grating materials.
  • Enhanced durability: The high proportion of resin used in molded fiberglass grating provides excellent resistance to corrosion, UV light, impact, and other environmental and mechanical stresses. These qualities also make them easier to maintain and allow them to perform reliably for years, even in high-load applications and extreme environments.
  • Improved ergonomics: The higher resin concentration also makes molded fiberglass gratings more flexible, which helps reduce worker fatigue.
  • Reduced weight: Fiberglass grating systems are significantly lighter in weight than their concrete and steel counterparts, making them easier and, consequently, less expensive to install.

Other key characteristics of molded gratings include electromagnetic transparency and electrical and thermal resistivity.

Need more information?

Creative Composites Group provides a comprehensive range of standard and customized FRP products to meet your project needs. Looking for more information about how we can help bring your project to life? Contact our staff of expert engineers today.
