Abrasion and Corrosion Resistant Composite Piping

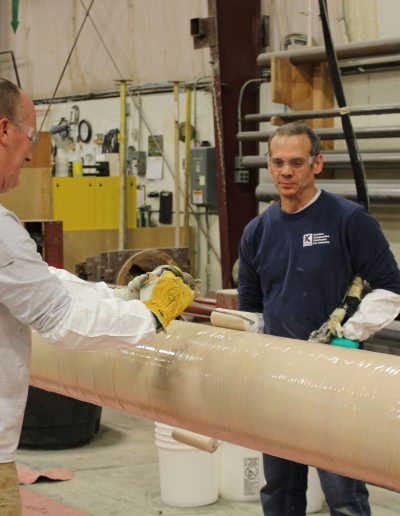

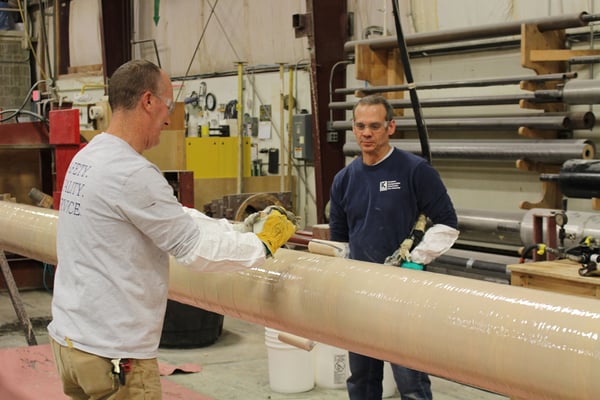

IMG_0369Our team believes that every piping system should be engineered and manufactured for its specific application. We work with our customers to identify the critical design issues in their system. Then, we custom fabricate pipe and components accordingly as part of our process piping design approach. Depending on the application we select from a variety of premium vinyl ester resins. We utilize the hand lay-up process for corrosion barriers and either hand lay-up or filament winding for structural manufacturing. Additionally, our team designs using various surfacing veils, chopped strand mats, woven roving, and unidirectional reinforcements. CCG's molding division works to create solutions for a variety of applications. An example is specialized corrosion resistant barriers for an aggressive chemical application (e.g., chlorine dioxide) in the pulp and paper industry. Another example would be proprietary abrasion-resistant liners for flue gas desulfurization in the power industry.

Composite Piping Specifications

  • Pipe diameters ranging from 2” Ø to 120” Ø.
  • Premium vinyl ester resin systems as well as epoxy resin systems
  • Corrosion & Abrasion Barriers in excess of 250mils using a wide variety of surfacing veils

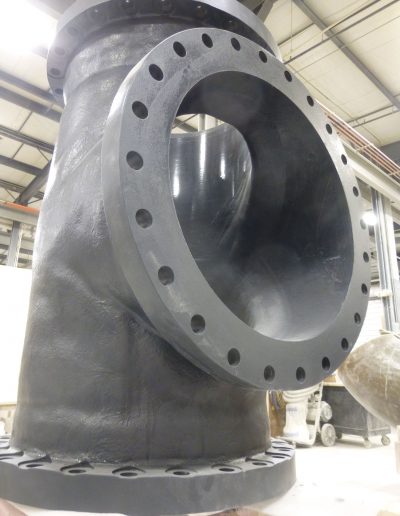

  • Full Face Flanges, Ductile Iron Van Stone Back-up Type Flanges, Elbows, Tees, Concentric/Eccentric Reducers, and other Custom Fittings
  • “Butt-and-Wrap” style joining techniques for highest long-term reliability.
  • Designs exceeding 150 psi.
  • Temperature ratings exceeding 210°F (depending on application)
  • Class I Flame Retardant
  • UV protective coatings

Common Types of Pipe

  • Chemical Transfer Pipe
  • Acid Sewer Pipe
  • Caustic Sewer Pipe
  • Corrosion Resistant Process Pipe
  • Filament Wound Pipe
  • Hand Lay Up Pipe
  • ABR (Abrasion Resistant Piping)
  • Contact Molded

Built to Industry Standards

  • ASTM C 581 Standard Practice for Determining Chemical Resistance of RTRP Intended for Liquid Service
  • ASTM C 582 Contact- Molded RTP Laminates for Corrosion-Resistant Equipment
  • ASTM D 2996 Filament-Wound Fiberglass Pipe
  • ASTM D 5421 Contact Molded Flanges
  • ASTM D 6041 FRP Corrosion Resistant Pipe and Fittings
  • NBS PS 15-69

Benefits of FRP Pipe

  • Ability to customize for a variety of applications
  • Lightweight – leading to lower installation costs
  • High strength to weight ratio
  • Low coefficient of friction
  • Low thermal conductivity
  • Reduced long-term maintenance costs

Types of Fittings

  • Elbows
  • Tees
  • Y’s
  • Laterals
  • Concentric Reducers
  • Eccentric Reducers
  • Crosses
  • Stub Flange

Flange Types

  • Full Face Flange
  • Back-up or Vanstone Flange

Joint Types

  • Butt and Wrap
  • Flanged
Corrosion Resisting Piping
Corrosion Resisting Piping
Corrosion Resisting Piping
Corrosion Resisting Piping
