Pultruded Grating

The Process

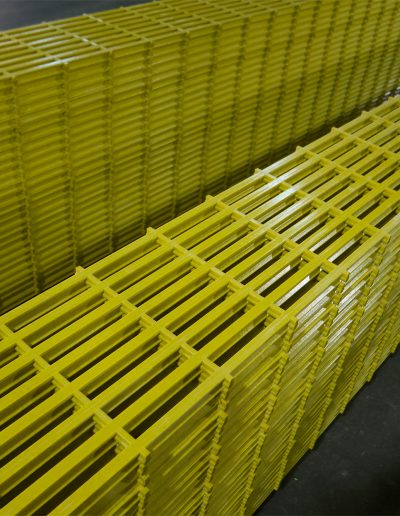

Supergrate® Pultruded Grating is a high strength lightweight fiberglass grating system. Creative fabricates this grating system from highly corrosion resistant I or T bars. The I or T bars are connected mechanically and adhesively with a unique notch and groove bar system. The pultrusion process is a continuous process. During this process, resin, roving, mat, and surface veil are guided into a heated die to make a constant cross-section. A synthetic surface veil is also added to provide a resin-rich surface for corrosion resistance and UV protection.

SUPERGRATE® Pultruded Grating

This fabricated grating is exceptionally stiff and has a modulus of elasticity of over 5 Msi. The 65,000 psi bending strength means that this grating is built for durability. A combination of strength and stiffness gives Supergrate® these attributes which are ideal for industrial flooring applications in which impact strength and toughness are daily requirements.

Supergrate® Pultruded Grating can achieve longer spans and higher load capacity than the standard molded FRP grating system.

Common Applications

  • Walkways
  • Stairs
  • Platforms
  • Trenches
  • Catwalks
  • Ramps
  • Boat Docks

SUPERGRATE® Pultruded Grating Offered In:

  • Thickness: 1”, 1-1/2” and 2”
  • Open Area: 1” deep and 1-1/2” deep “I” shaped bar in 40%, 50%, and 60%
    2” deep “T” shaped bar in 33% and 50% open area
  • Panels Sizes: Various Sizes
  • Cross Rod Spacing: 6” and 12”
  • Antiskid Top Surfaces: Grit Top – epoxy-bonded quartz aggregate
  • Colors: Yellow and Dark Gray
  • Resin System: Isophthalic Polyester Fire Retardant
  • Vinyl Ester Fire Retardant

Fire Retardant Properties: Pultruded grating products perform to a Class 1 Fire Rating of 25 or Less Per ASTM E-84 and are Self-Extinguishing per ASTM D-635.

*Special resins, colors, and lengths are available.

Features & Benefits

  • Corrosion Resistance
  • UV Resistance
  • Maintenance Free
  • Long Life
  • Electrical and Thermal Insulation
  • Lightweight

A standard line of panel hold-down clips, panel connectors, curb angle, and other grating support systems are available.

Need more information?

Creative Composites Group provides a comprehensive range of standard and customized FRP products to meet your project needs. Looking for more information about how we can help bring your project to life? Contact our staff of expert engineers today.
