Composite Marine Fender Systems & Bridge Protection

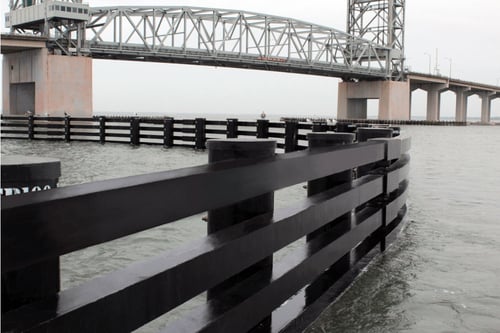

Fender systems using FPR composite structural elements are the ideal solution for waterway protection systems and ferry terminal guide walls required to withstand high energy impacts from both barges and ships. The enabling technology are StormStrong FRP pipe piles that come in a wide range of sizes. The FRP piles offer the strength of steel, but a much lower bending stiffness (EI) which allows for far greater energy absorption than traditional materials. Unlike rigid concrete and steel fender systems, the FRP system is designed to deflect and then recover, without damaging either the vessel or the fender.

FRP Fenders Have Superior Energy Absorption & Low Environmental Impact

Using an engineered material with FRP performance, the fender system can be designed with fewer piles at wider spacing. This significantly reduces construction costs and results in fender systems with both lower acquisition costs and longer life than steel, concrete and wood systems.

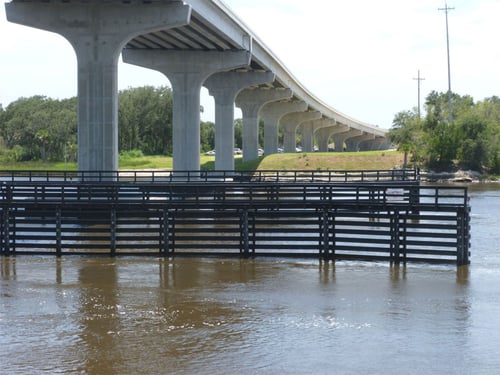

FRP waterfront Products include:P1080875

  • Pipe Piles - in a wide range of sizes
  • Wales - using stiffer FRP when a tight radius is needed
  • Splice Plates & Channels - for connecting FRP wales and plastic lumber wales
  • Pile Caps - for a solid surface lid
  • Pile Splices - for very long piles or tight installation under bridges
  • HDPE Sleeves - for added wear protection in vessel strike zones
  • Dolphin Monopiles - for high impact at the start of fender systems

When you factor in the corrosion resistant nature of the FRP materials, these FRP fender protection systems are the most cost-effective solution.

Accessories

FiberWALE

FiberWALES are fiber reinforced structural sections with a higher stiffness than plastic lumber.  This distributes impact loads to more pilings in a fender system.  LEARN MORE >>

Need more information?

Creative Composites Group provides a comprehensive range of standard and customized FRP products to meet your project needs. Looking for more information about how we can help bring your project to life? Contact our staff of expert engineers today.

Contact Us

Fender Systems Resource Library
