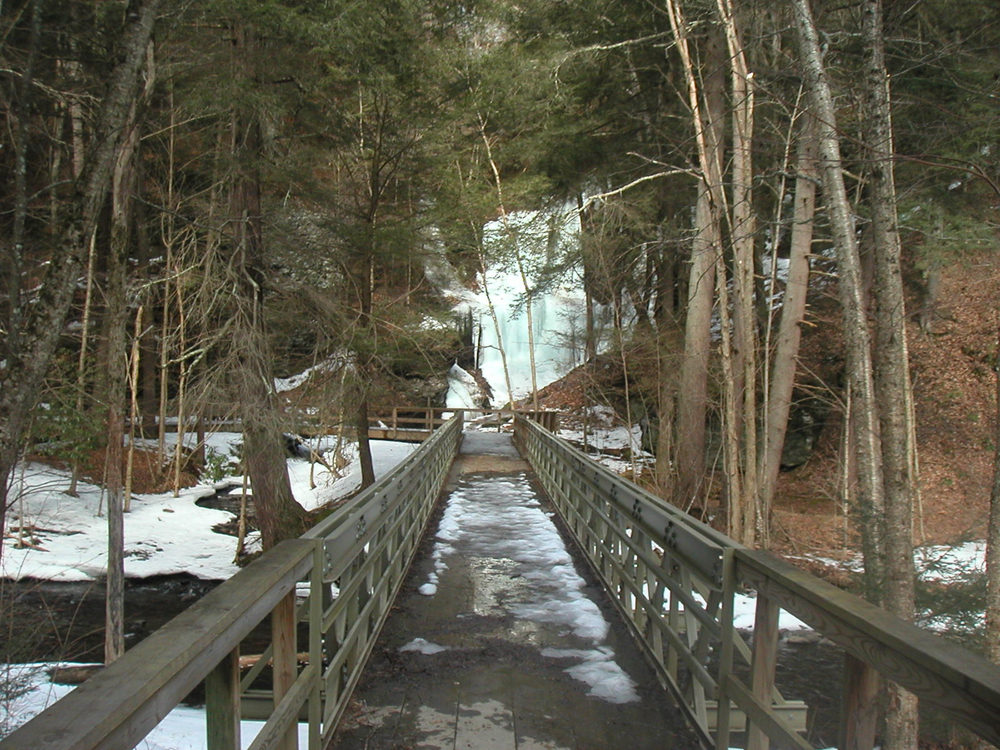

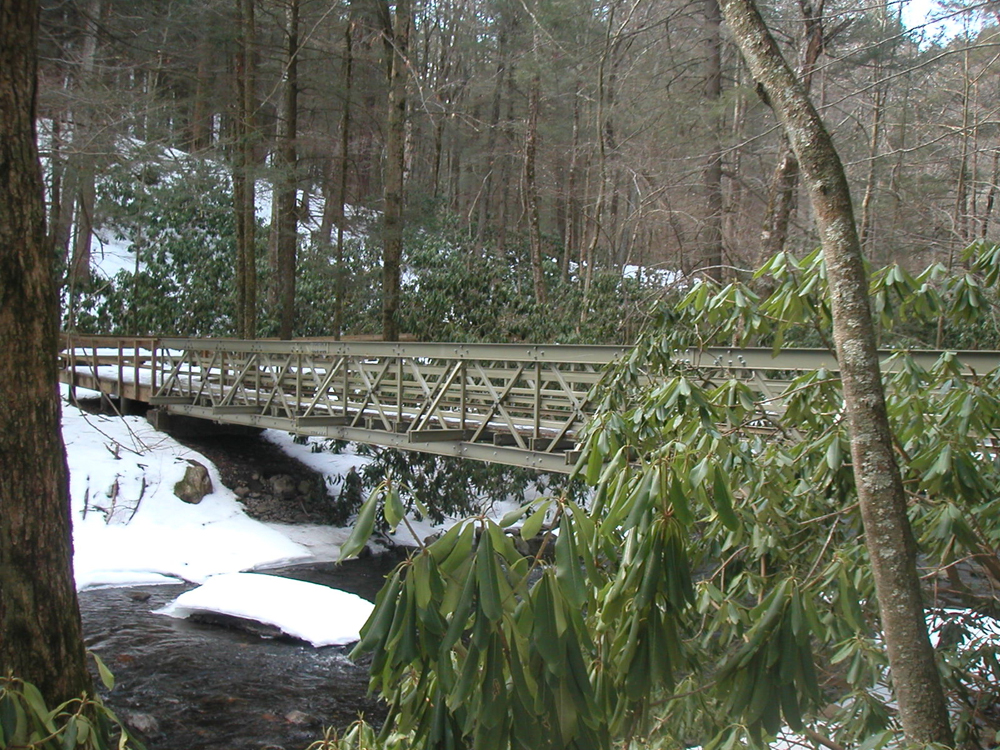

Location: Bushkill, PA

Project: Specialty

Span: 80'-0" x 6'-0"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 60 psf
  • Fiberglass support trusses (two diagonals with plates/panel)
  • 42” handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 9” max. opening
  • A307 galvanized steel bolts
  • Creative Pultrusions, Inc. Series 1500 Olive Green color
  • Galvanized steel mounting clips
  • Components shipped unassembled
