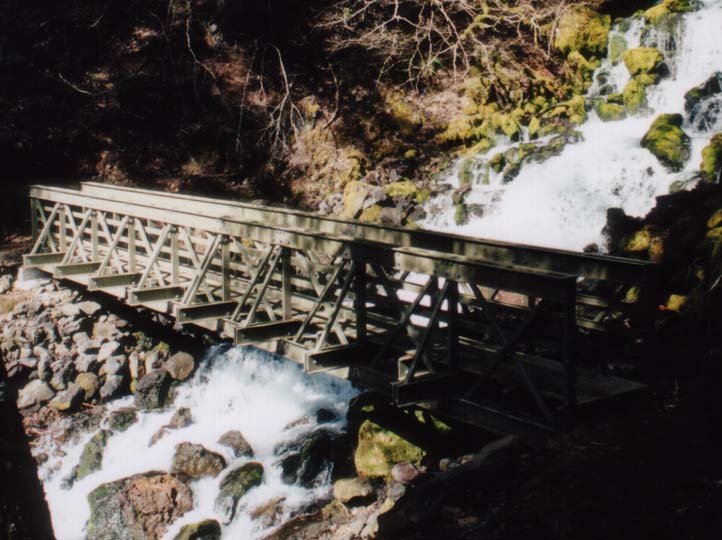

Location: Gifford Pinchot National Forest, WA

Type: Specialty

Span: 45’-0" x 3’-0"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 85 psf/snow load = 250 psf
  • Fiberglass support trusses (two diagonals spaced apart/panel)
  • 42” handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 9” max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Creative Pultrusions, Inc. Series 1500 Olive Green color
  • Galvanized steel mounting clips
  • FRP composite deck
  • Components shipped unassembled
