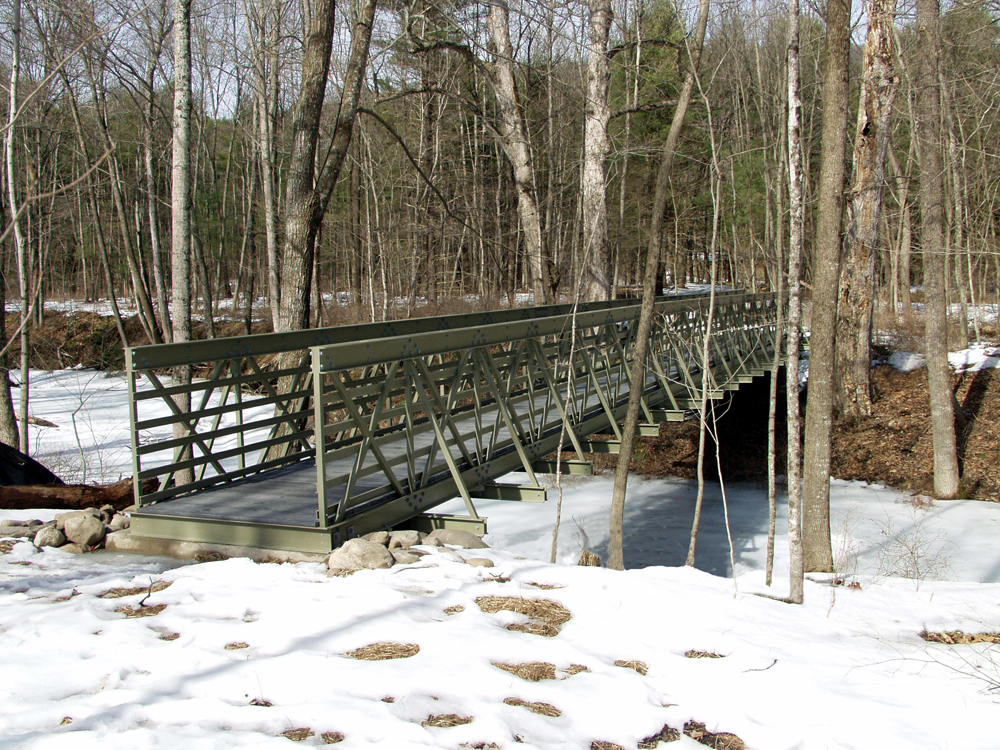

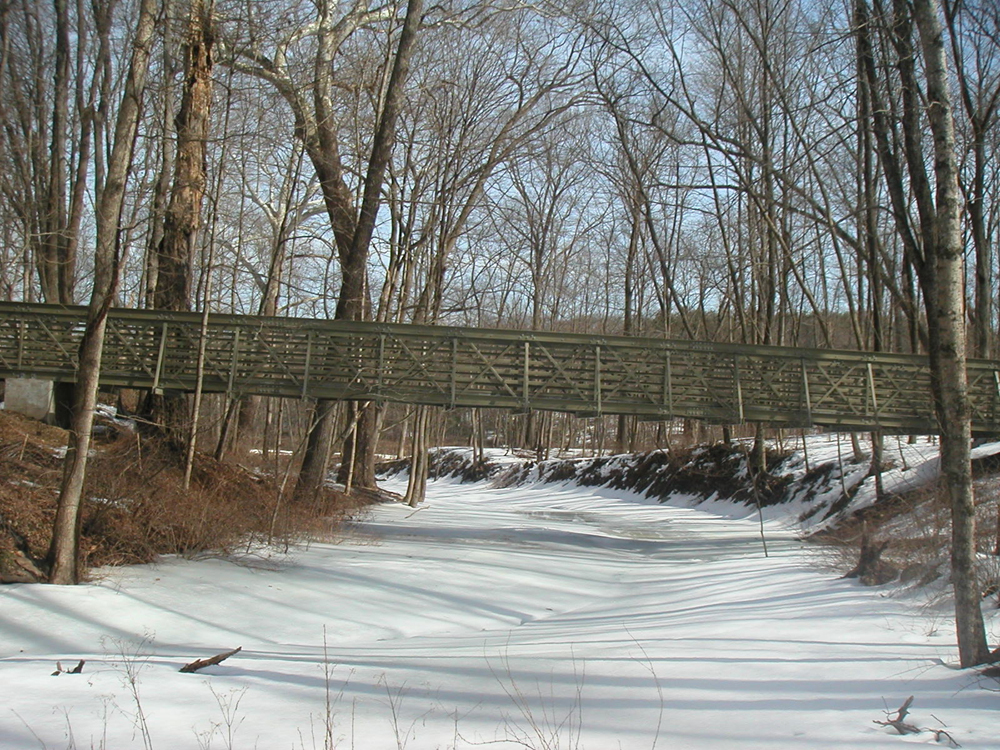

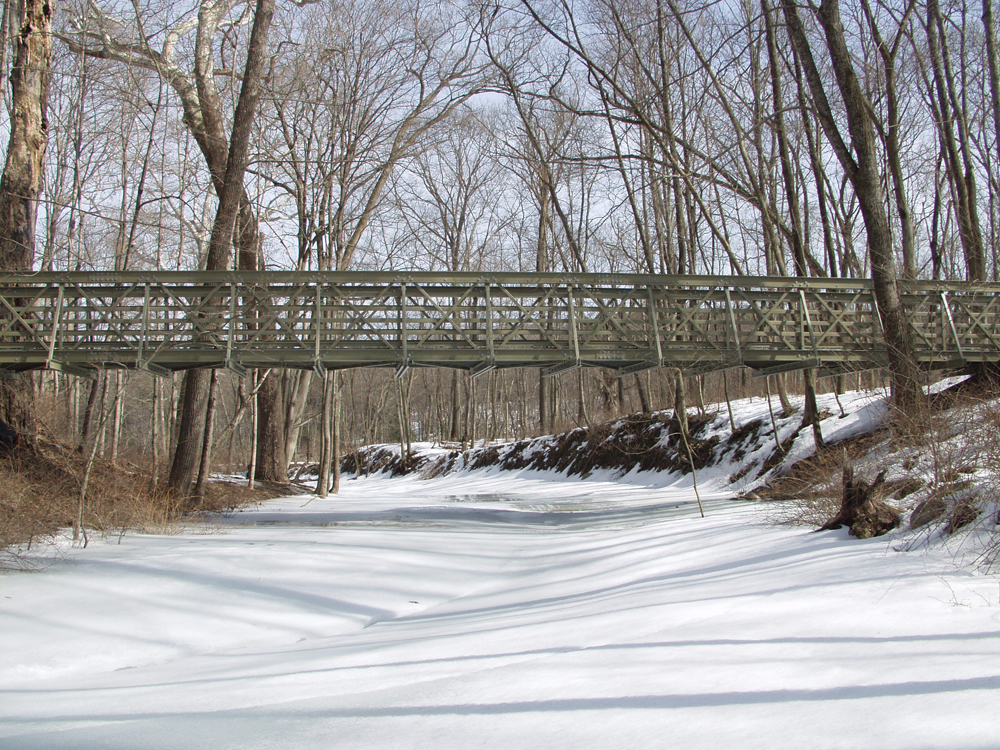

Location: Bushkill, PA

Project: Straight End

Span: 95’-0" x 6’-0"

Design Specifications:

  • Pedestrian/bicycle/maintenance equipment bridge
  • Design live load = 85 psf/maintenance equipment (5000 lbs.)
  • Fiberglass support trusses (two diagonals/panel)
  • 54” handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 9” max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Creative Pultrusions, Inc. Series 1500 Olive Green color
  • Galvanized steel mounting clips
  • Structural plastic lumber (TRIMAX®)
  • Components shipped unassembled
