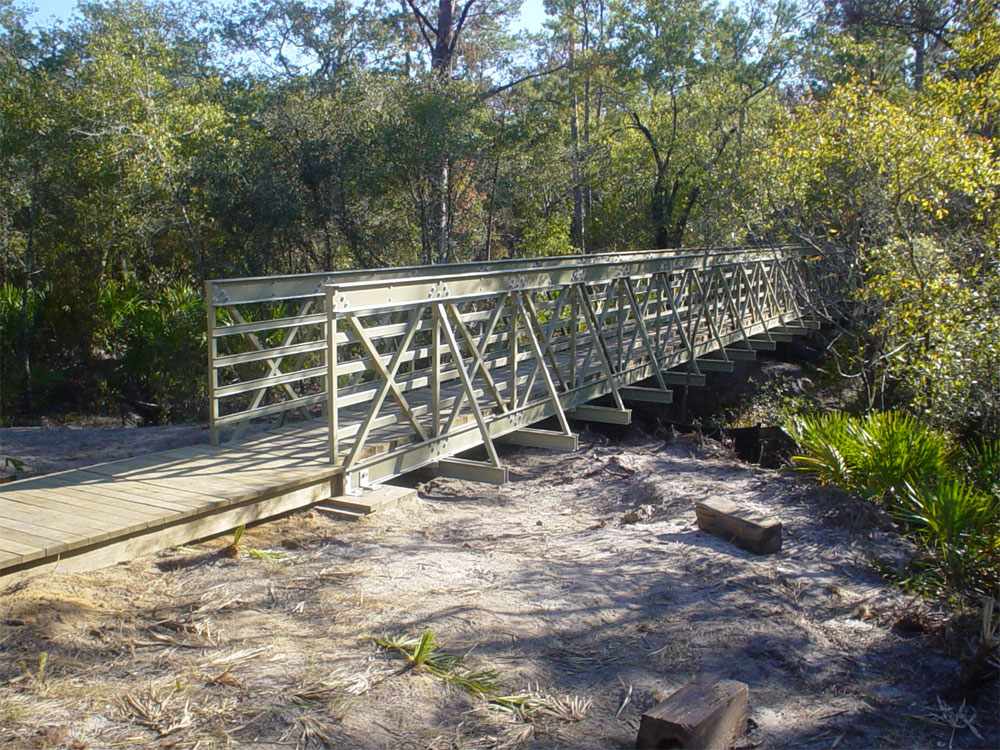

Location: Tallahassee, FL
Type: Straight End
Span: 80'-0" x 4'-0"

Design Specifications:

  • Pedestrian/equestrian bridge
  • Design live load = 85 psf
  • Fiberglass support trusses (two diagonals/panel)
  • 54” handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 9” max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Creative Pultrusions, Inc. Series 1500 Olive Green color
  • Galvanized steel mounting clips
  •  3” x 12” #2 pressure treated Southern Yellow Pine decking
  • Components shipped unassembled
