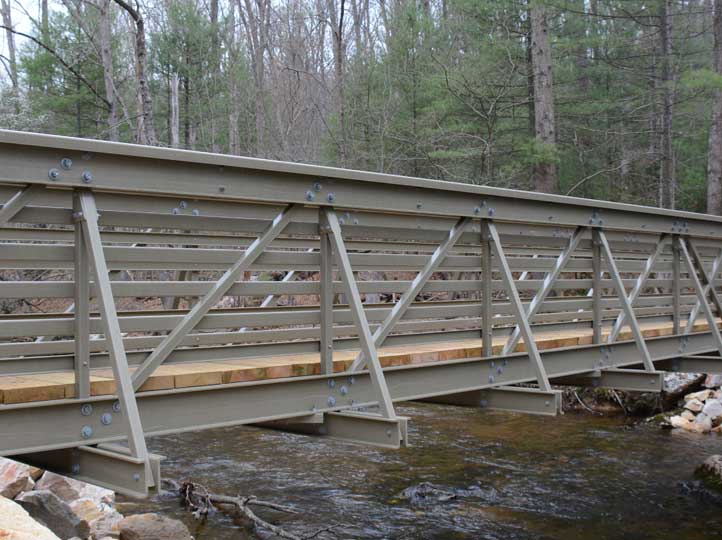

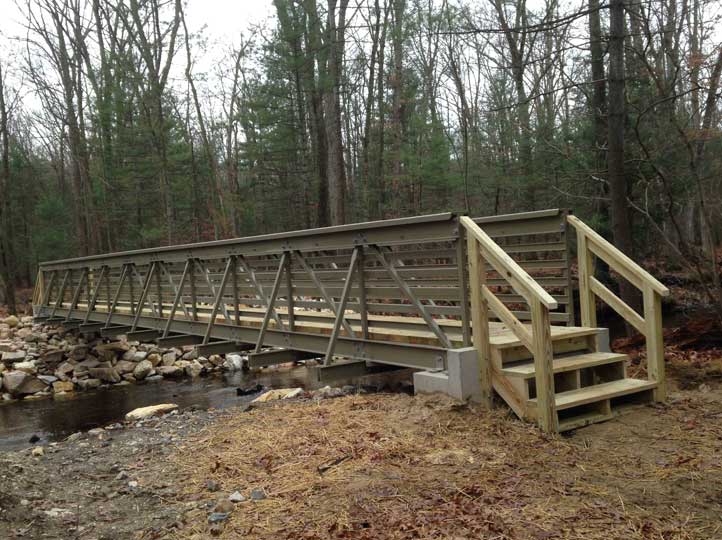

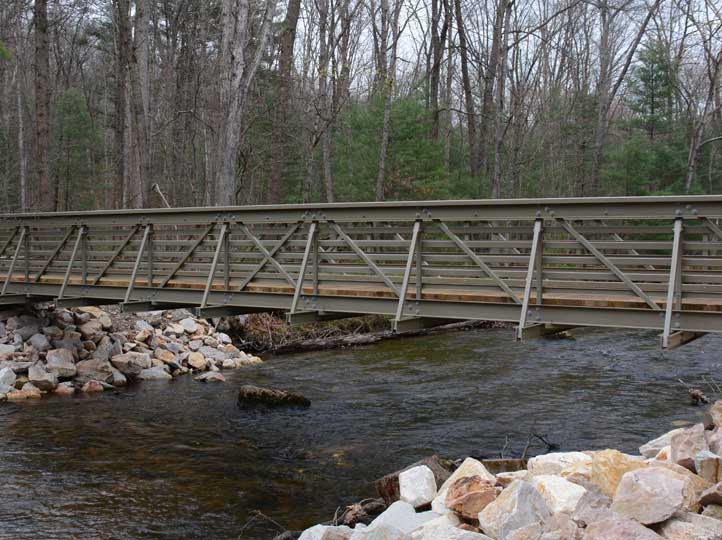

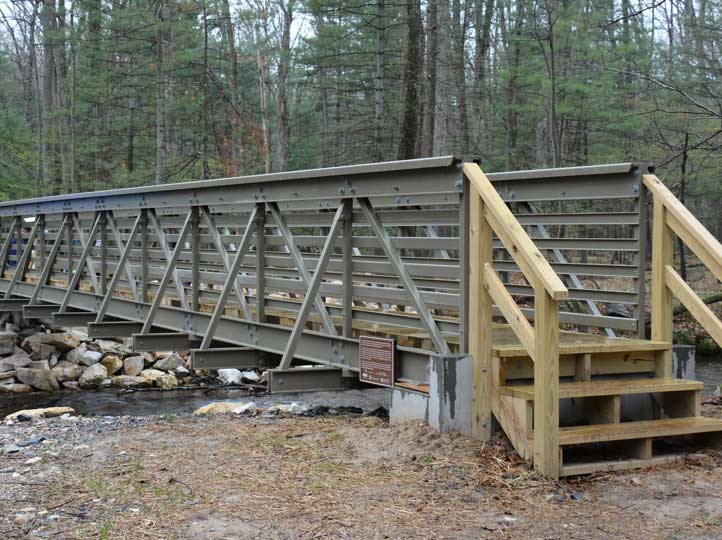

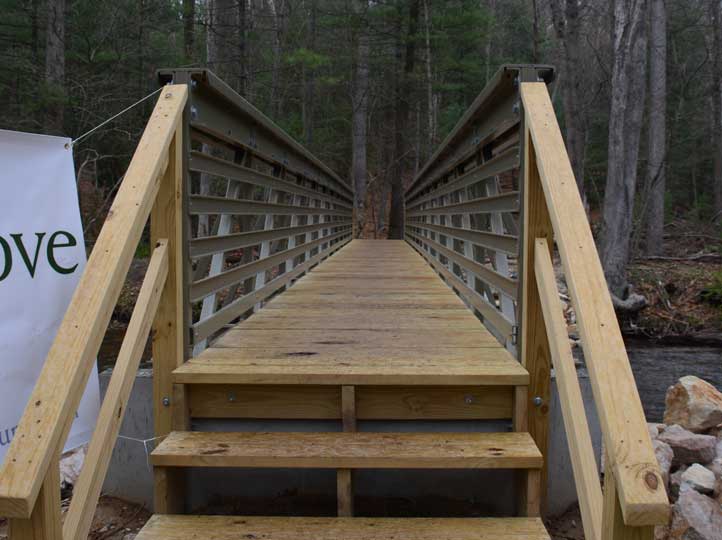

Location: Gardners, PA

Type: Straight End

Span: 55'-0" x 3'-5"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 85.0 psf
  • Fiberglass support trusses (x-brace/panel)
  • 42" handrail height above decking

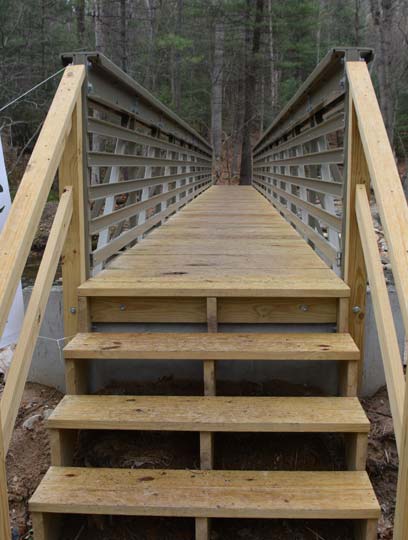

  • Straight end design
  • Horizontal safety midrails providing 4" max. opening (ADA specs.)
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Galvanized steel mounting clips
  • 3" x 12' #2 pressure treated Southern Yellow Pine decking (ADA 1/2" max. gap)
  • Components shipped unassembled
