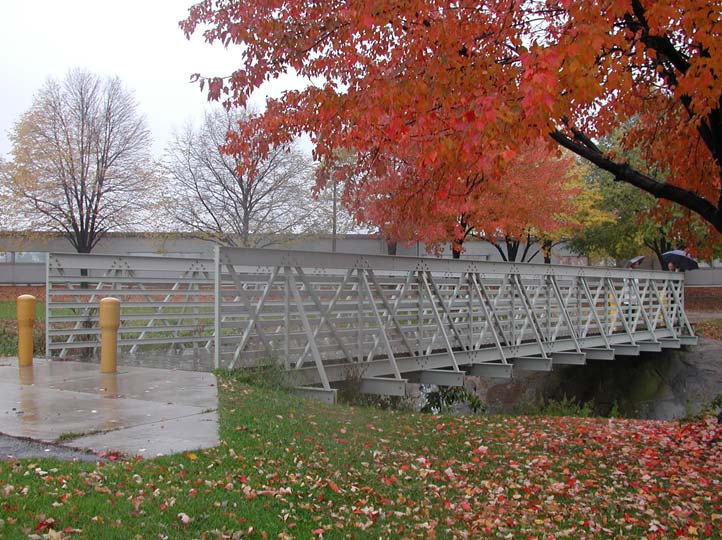

Location: Akron, OH

Type: Straight End

Span: 58'-0" x 10'-0"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 85 psf
  • Fiberglass support trusses (two diagonals/panel)
  • 54" handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 4" max. opening
  • Stainless steel bolts
  • Standard dead load camber
  • Custom grey color
  • Custom iron oxide red color
  • Stainless steel mounting clips
  • 3" x 12" #2 pressure treated Southern Yellow Pine decking
  • Components shipped unassembled
