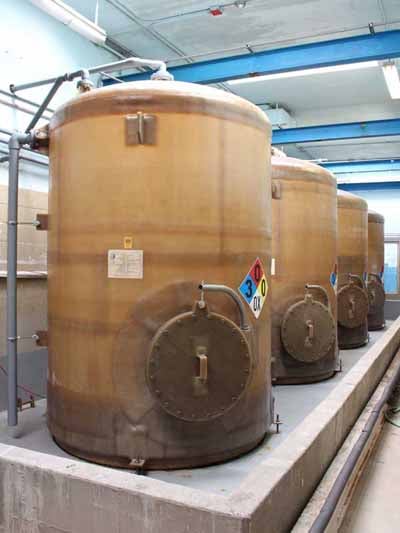

IMG_0335.web-2Fiber Reinforced Polymer (FRP) tanks and process vessels have been the standard material choice for years for any industry using strong chemicals for producing their products. Some industrial chemicals deteriorate traditional metal tanks causing costly repairs or replacement. FRP tanks excel in these environments with longevity and ease of repair.

FRP Tanks Have Inherent Material Benefits

    • Corrosion resistance to most chemicals (acids, alkalis, salts, oils, strong oxidizers, and solvents)
    • High strength
    • Lightweight at only 25% of steel density
    • Excellent thermal insulation (low conductivity)
    • Non-conductive (will not transmit electrical currents)



Applications in the Industrial Processing World

    • Chemical Storage Tanks
    • Process Tank
    • Seal Tanks
    • Scrubbers and Absorbers
    • Bleached Stock Towers

All quality FRP tanks are designed and built to stringent industry standards. Our engineers design per the relevant ASTM and ASME RTP-1 tank standards. Our FRPI certification ensures customers receive a product created to the highest standards. Every FRPI stamp issued means the process was monitored by an outside source.

While FRP tanks are standard for the industry, that does not mean the tanks are ordinary. The majority of tanks are a cylindrical in shape, but from there, the design is customized to customer requirements.

Some of the Configurations include:

    • Horizontal or Vertical
    • Flat, Conical, or Sloped Bottom
    • Dual Wall Vessels
    • ASME Dished, Elliptical, or Flat Heads
    • Open Top
    • Cylindrical, Square, or Rectangular Shape Tanks

We can filament wind tanks as large as 12’Ø while our hand lay-up tanks can exceed 24’Ø. Every corrosion barrier is done with the hand lay-up method to ensure a void-free laminate with the proper resin ratio that meets or exceeds any standard or specification. We design each FRP tank to ensure long service life and excellent performance while respecting every customer’s specifications and budget.

When customers expect full-service delivery, our team is skilled at coordinating and executing the field installation for any of the products that we engineer and fabricate. The same highly competent shop laminators are the technicians that travel to the job site and perform the work that ensures a successful installation and extended equipment life.

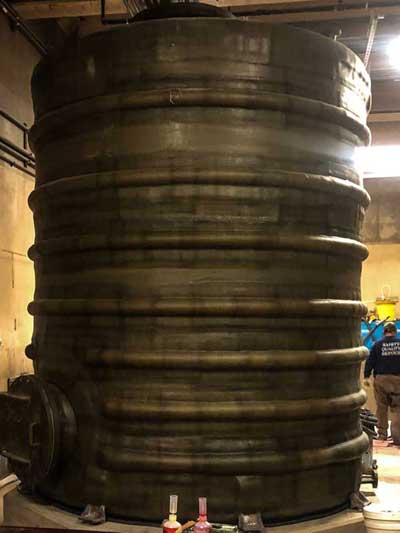

fri-tank-installation-nj_edited-2

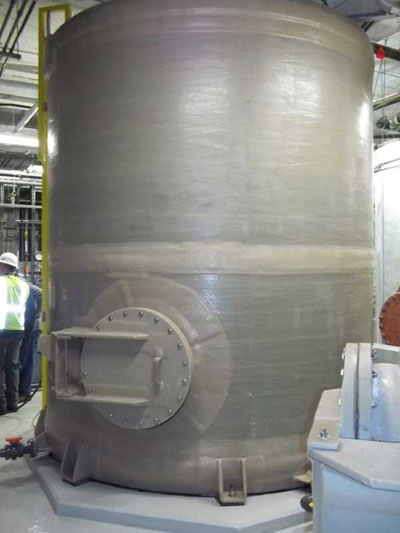

FRPI-Tank-MWH-2

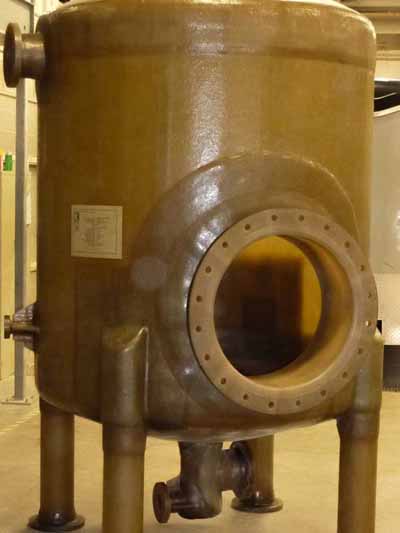

Spent-Acid-tank-004_edited-1

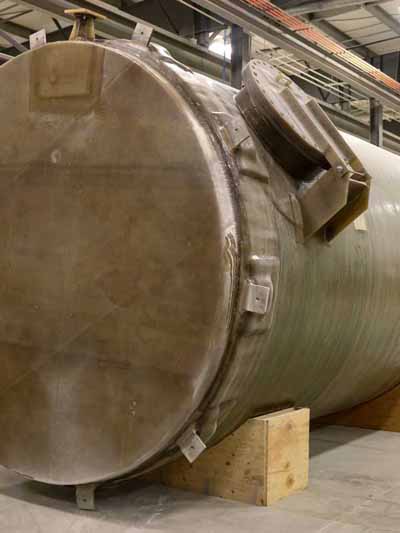

IMG_0825_edited-2

Need more information?

Creative Composites Group provides a comprehensive range of standard and customized FRP products to meet your project needs. Looking for more information about how we can help bring your project to life? Contact our staff of expert engineers today.
