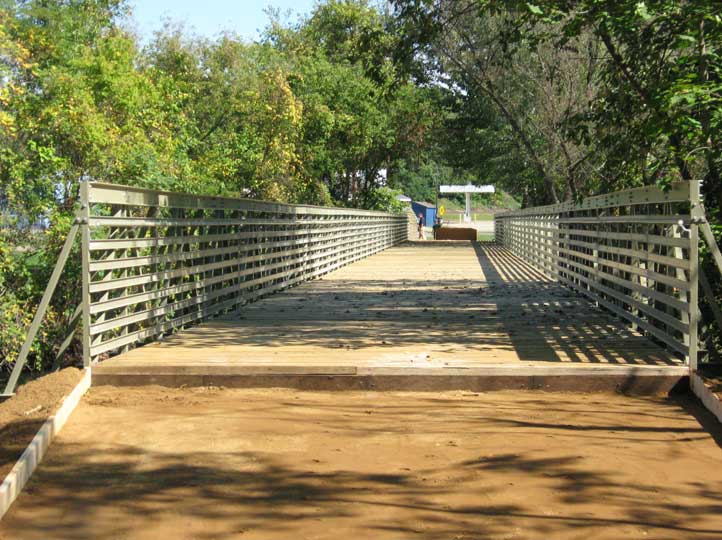

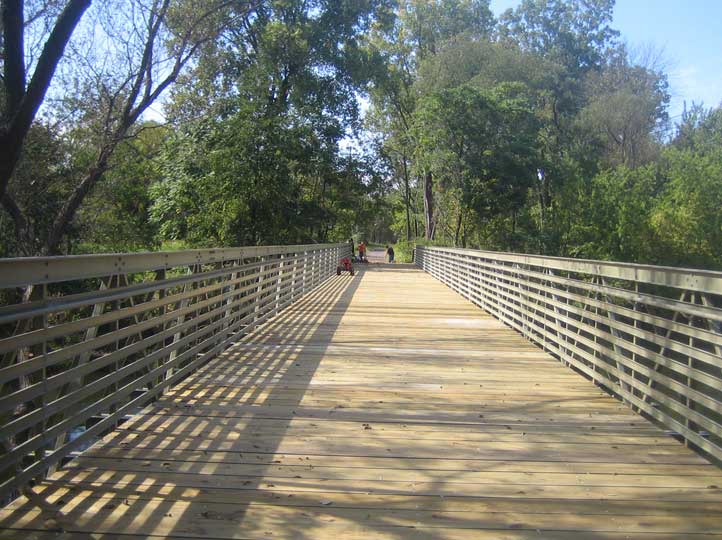

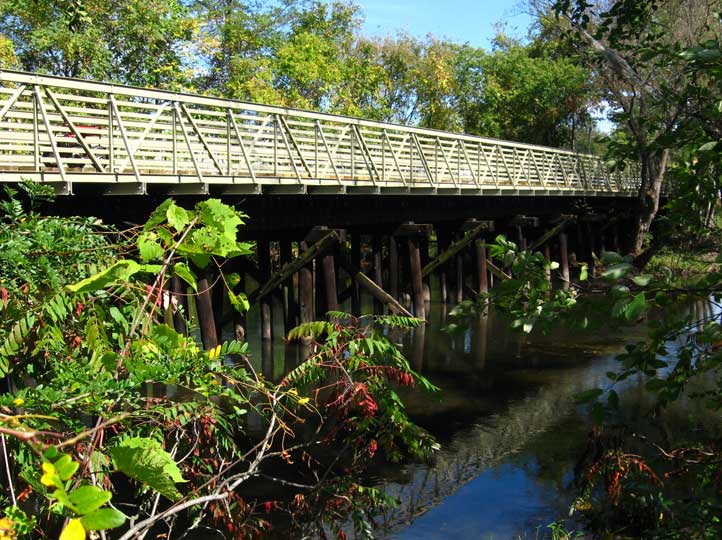

Location: Albion, MI

Type: Specialty

Span: 270'-0" x 14'-0"

Design Specifications:

  • Pedestrian/bicycle/light vehicle bridge
  • Design live load = 100 psf/light vehicle (10,000 lbs.)
  • Fiberglass support trusses (single diagonal/panel)
  • 54" handrail height above decking
  • Straight end design
  • ADA handrail at 34"
  • Horizontal safety midrails providing 4" max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Creative Pultrusions, Inc. Series 1500 Olive Green color
  • Galvanized steel mounting clips
  • 3" x 12" #2 pressure treated Southern Yellow Pine decking
  • Components shipped unassembled
