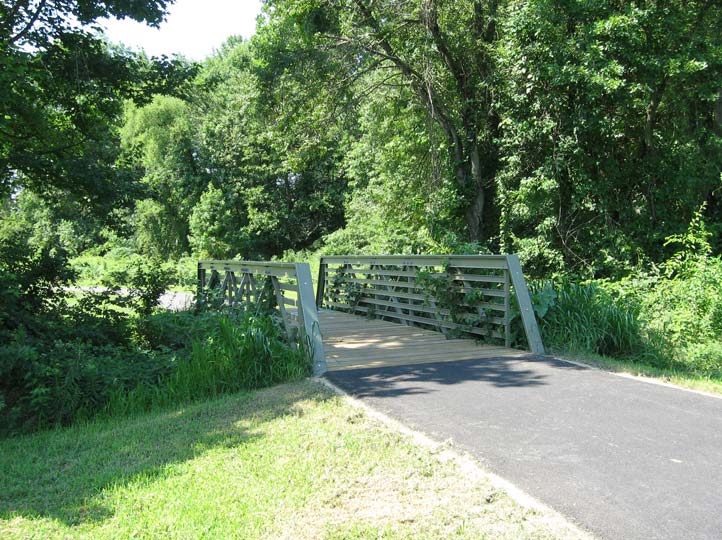

Location: New Castle, DE

Type: Sloped End

Span: 30'-0" x 8'-0"

Design Specifications:

  • Pedestrian/bicycle/maintenance equipment bridge
  • Design live load = 85 psf/maintenance equipment (3000 lbs.)
  • Fiberglass support trusses (one diagonal/panel)
  • 42” handrail height above decking
  • Sloped end design
  • Top cap
  • Horizontal safety midrails providing 4” max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Creative Pultrusions, Inc. Series 1500 Olive Green color
  • Galvanized steel mounting clips
  • 3”x12” #2 pressure treated Southern Yellow Pine decking
  • Components shipped unassembled
