Location: Jacksonville, FL

Project: St. John’s River Ferry

Product: Guidewalls

Overview: The Jacksonville Transportation Authority needed energy-absorbing guide walls for the St. John’s River Ferry to address aggressive currents and strong winds and make berth less difficult. The JTA considered different alternatives with the primary goal to find a low maintenance fender slip wall system that would also provide greater energy absorption. Durability, flexibility, low maintenance, and corrosion resistance made FiberPILE™ the material of choice.

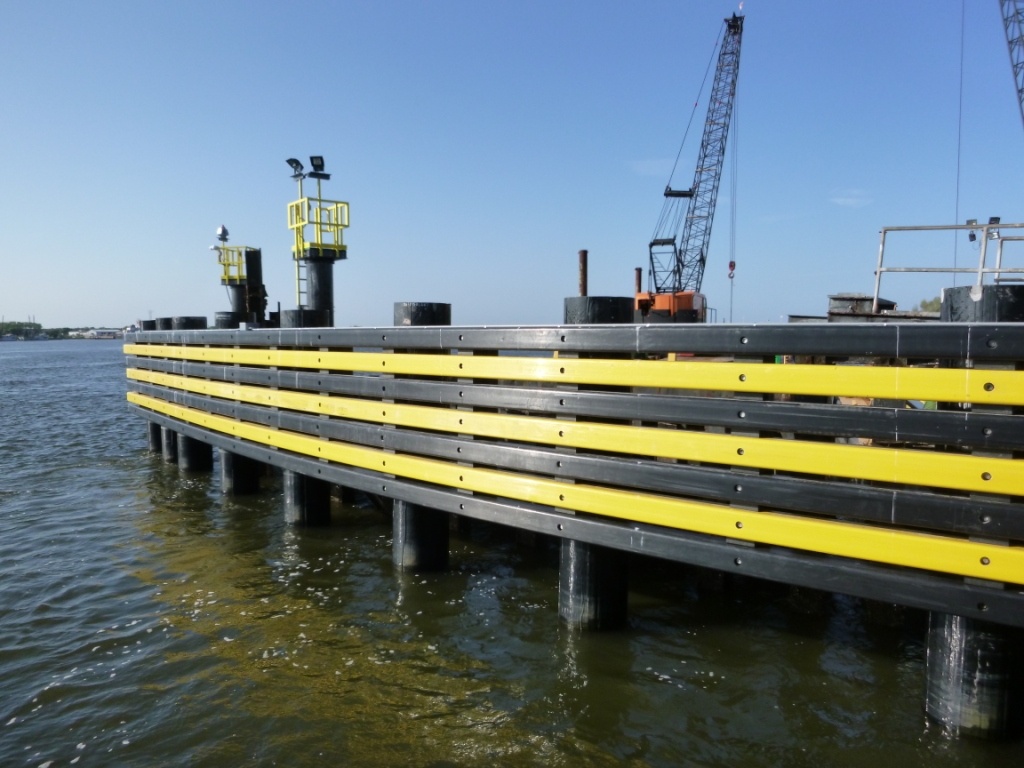

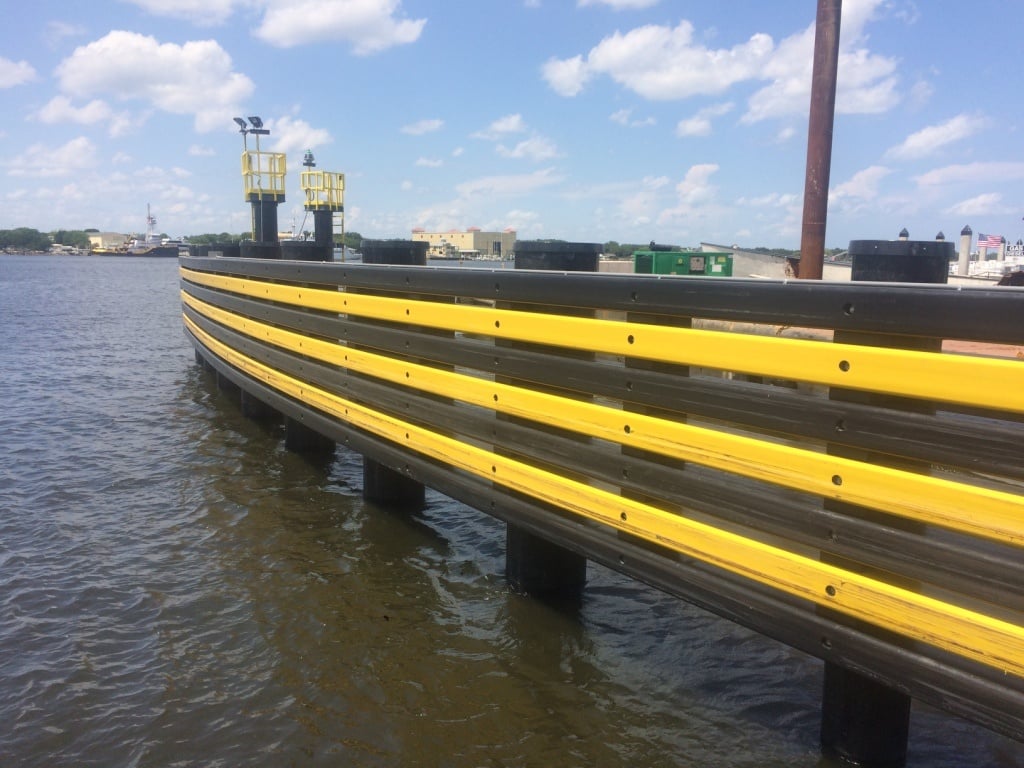

The energy-absorbing system reduces fender wall damage and improves safety and comfort, allowing passengers to enjoy the ride. The new FRP slip walls use a combination of 24-inch and 36-inch diameter FiberPILEs at lengths up to 100 feet. The wales are comprised of high strength composite timbers to distribute the impact loads to the piles. FRP channels splice the timbers along their lengths. The timbers are bolted to the piles.

Featured Project: St. Johns River Ferry Terminal

FRP guide walls make Jacksonville ferry terminals a soft landing

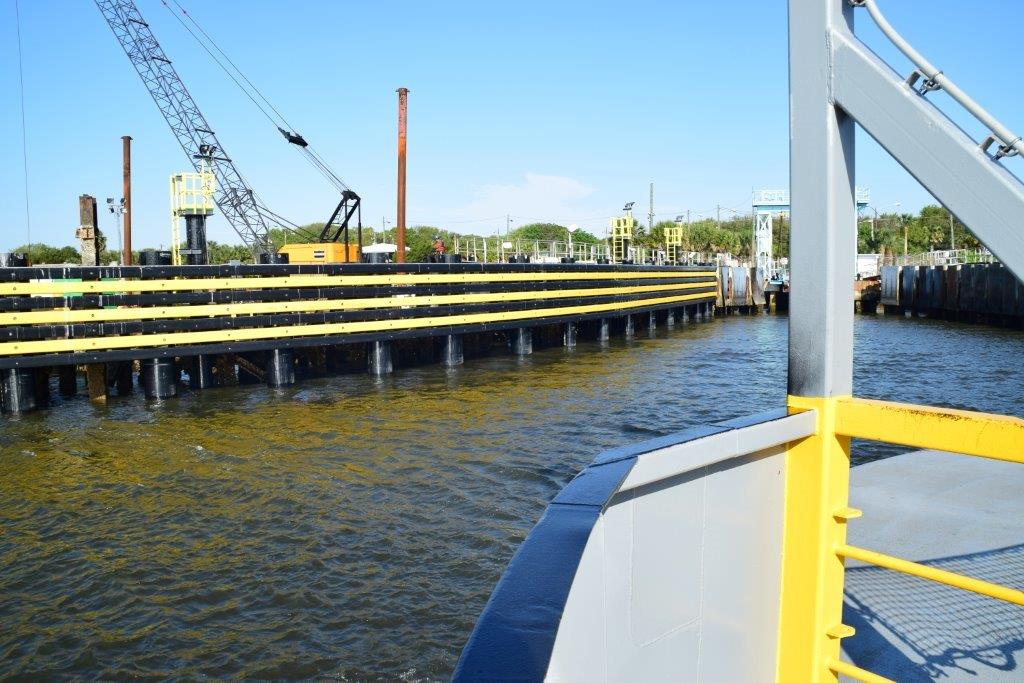

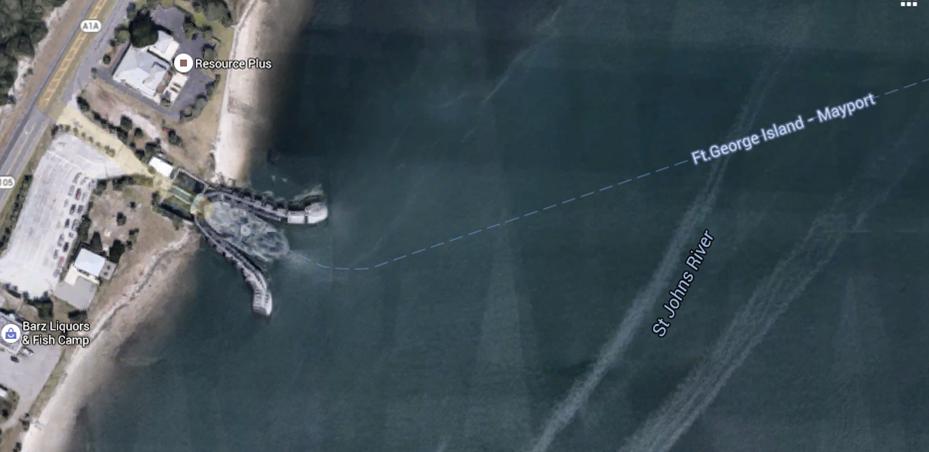

In the late 1800s, ferry service across the St. Johns River probably consisted of little more than a large wooden raft pulled by cables—its’ passengers people, animals and wagons. Today the St. Johns River Ferry moves cars and passengers back and forth between Mayport and Fort George Island. The 0.9 mile voyage departs every half hour.

The Jacksonville Transportation Authority (JTA) secured funding for upgrades that included new terminal structures and took over operation of the St. Johns River Ferry in March 2016. Aggressive currents and strong winds can make berth operations very difficult. The JTA needed energy absorbing guide walls to address these challenging conditions.

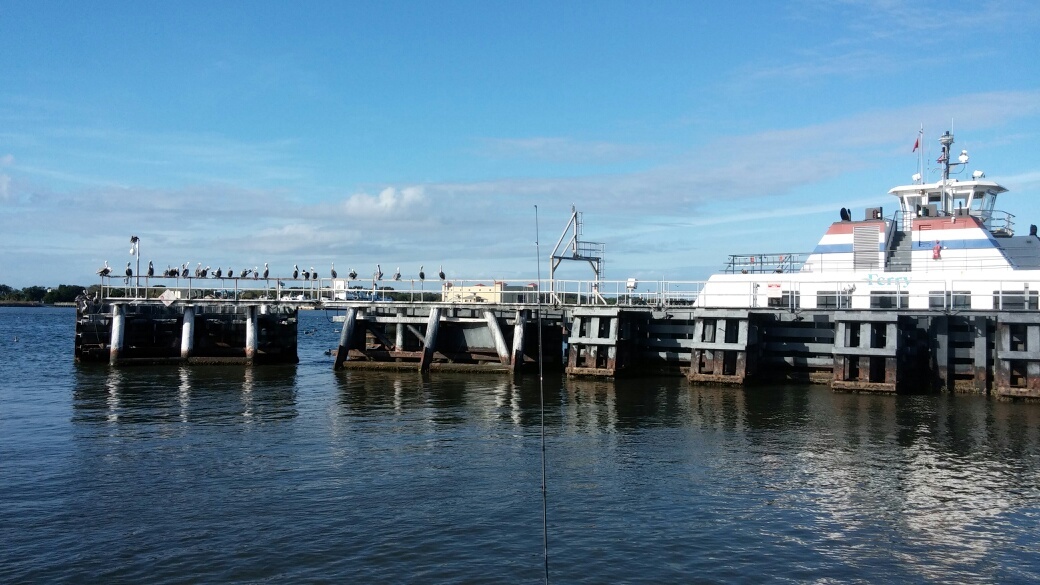

The existing steel and concrete fender wall guiding the ferry into its slip was repeatedly subjected to hard hits. Steel and concrete are by nature very stiff resulting in hard landings which sometimes resulted in damage to the vessel and the guide wall and compromised passenger safety.


The JTA considered different alternatives with the primary goal to find a low maintenance fender guide wall system that would also provide greater energy absorption. Durability, flexibility, low maintenance and corrosion resistance made FiberPILE the material of choice. The energy absorbing system reduces fender wall damage and improves safety and comfort, allowing passengers to enjoy the ride.

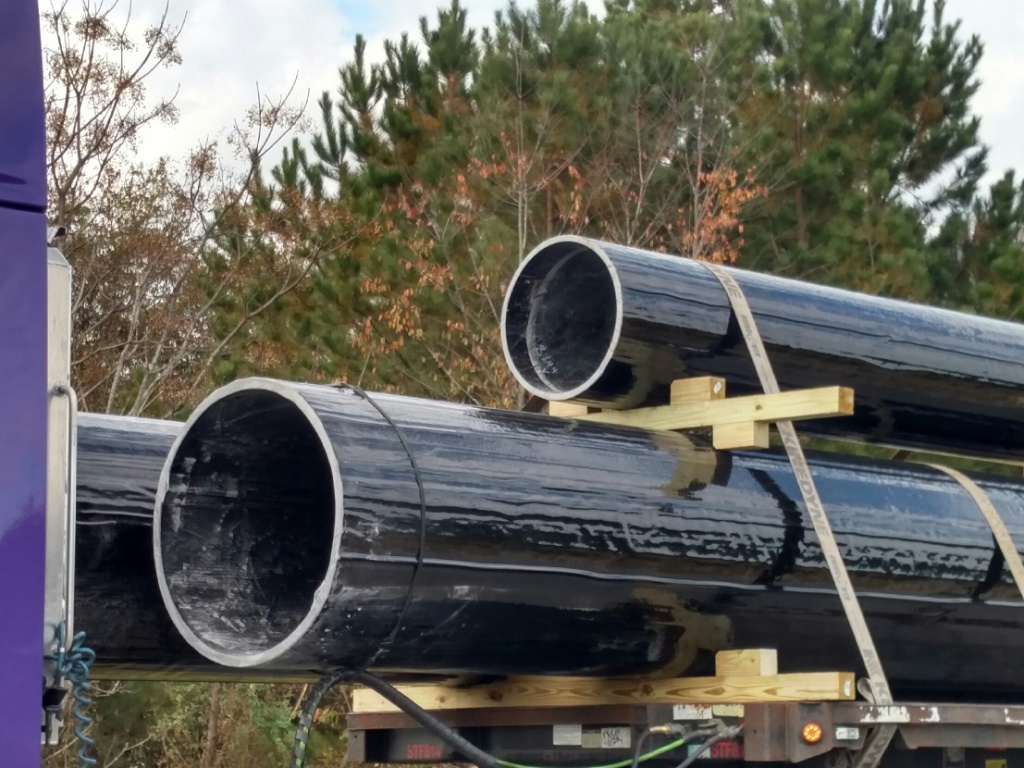

FiberPILE large diameter pilings are constructed using high-strength, directional fiberglass materials and a resin system formulated to withstand the most corrosive environments. The combination results in a maintenance free piling product that is ideal for protecting structures from the impact of barges and ships.

JTA Ferry Blog Photo.jpgStandard FiberPILE diameters range from 24 inches to 48 inches and can be fabricated in continuous lengths up to 100 feet. Because FiberPILE uses fewer, large diameter pipe piles, installation costs are reduced. FiberPILE products can be driven with conventional pile driving equipment including both impact and vibratory hammers. FiberPILE can be cut, drilled, and connected using standard tools and hardware.

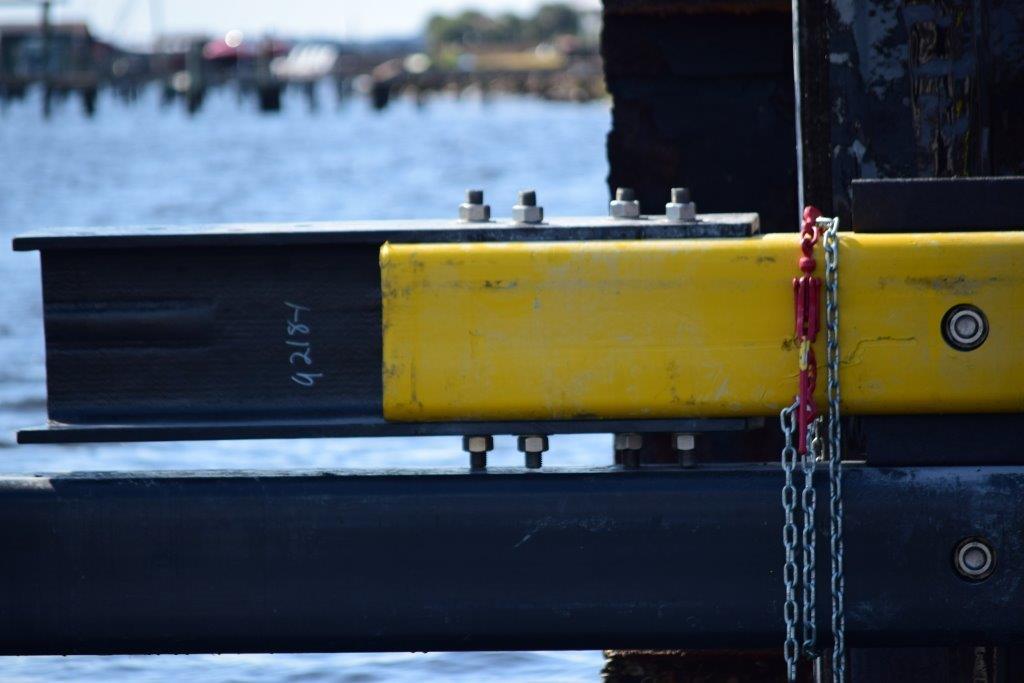

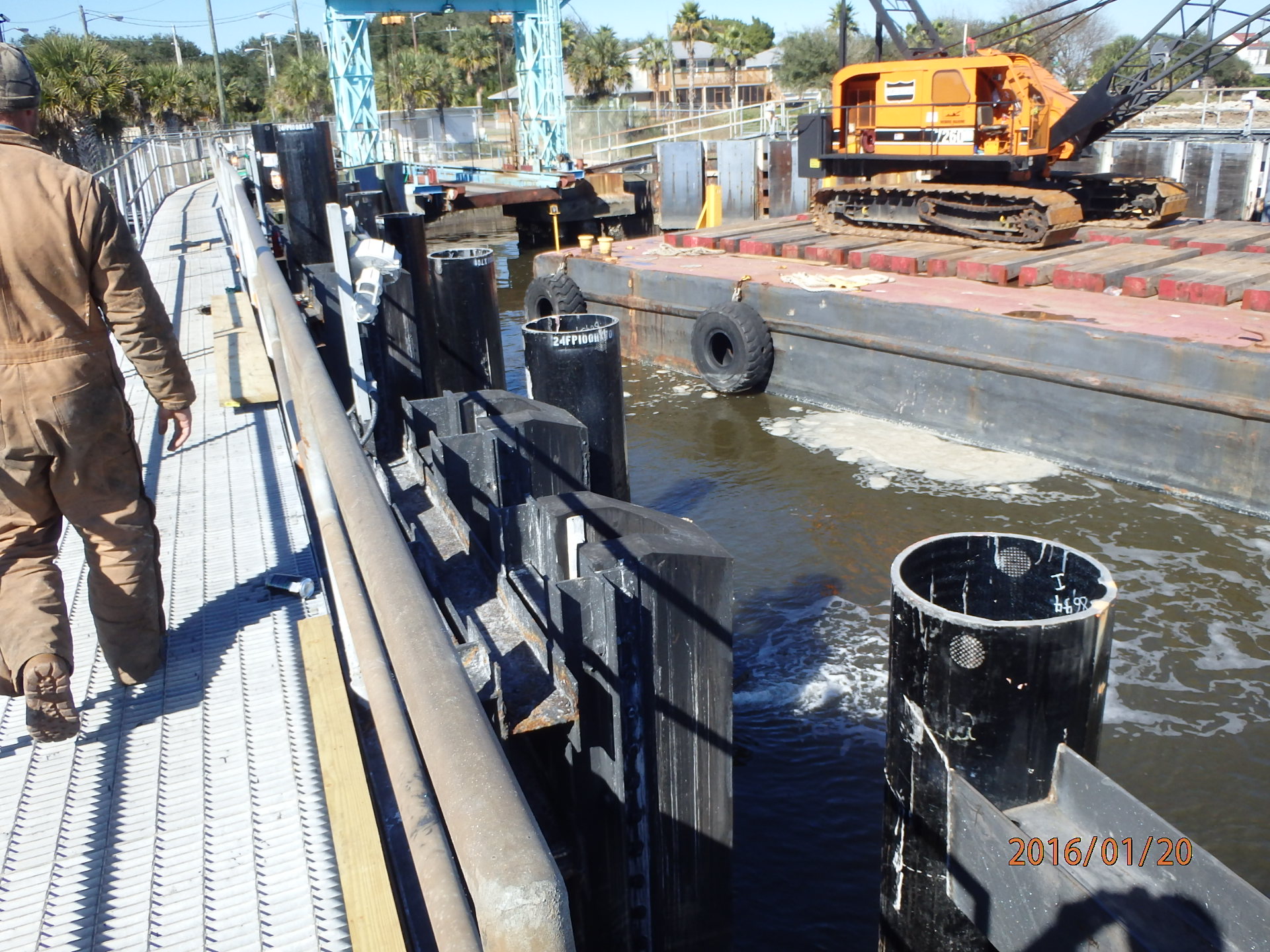

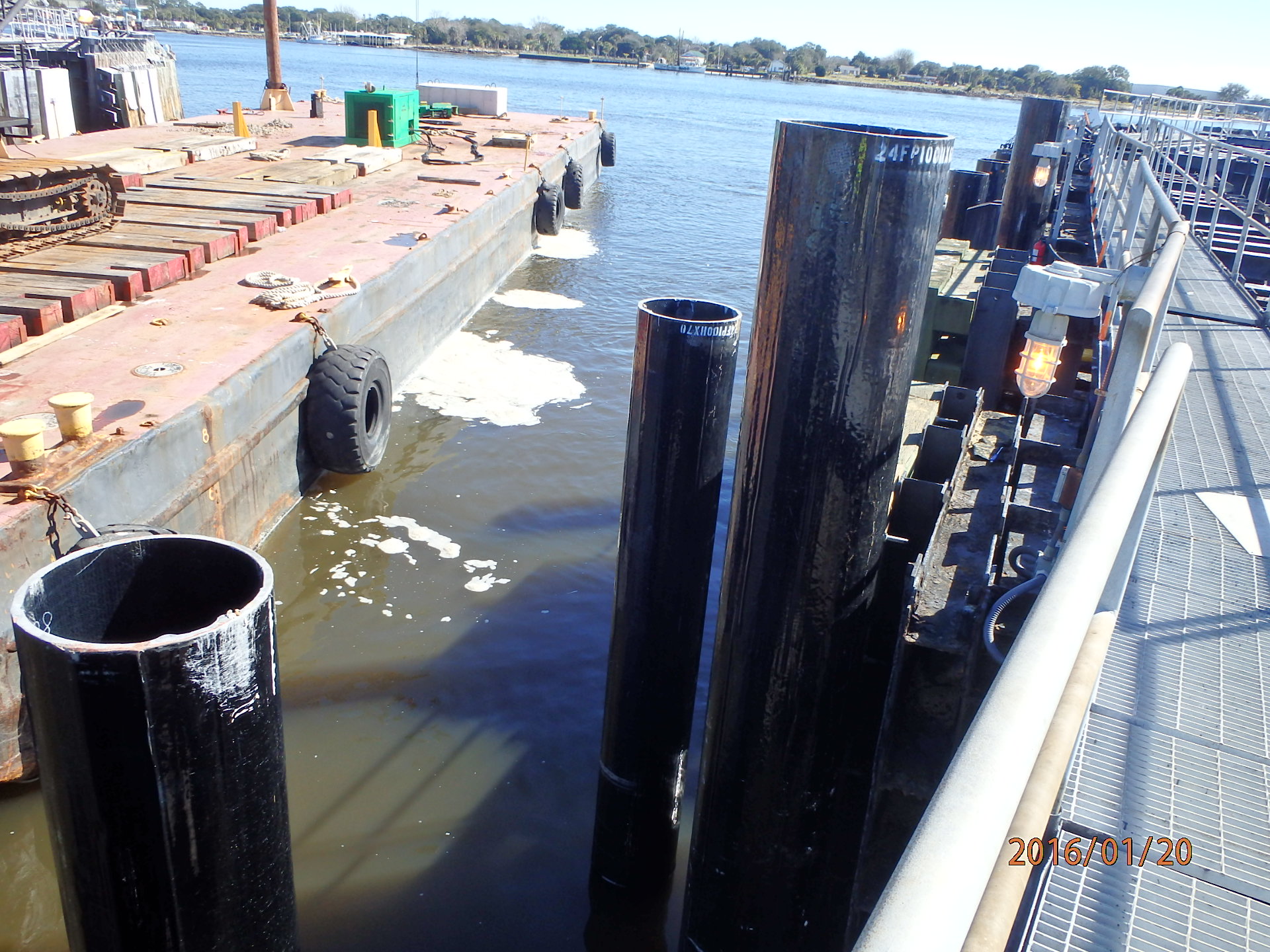

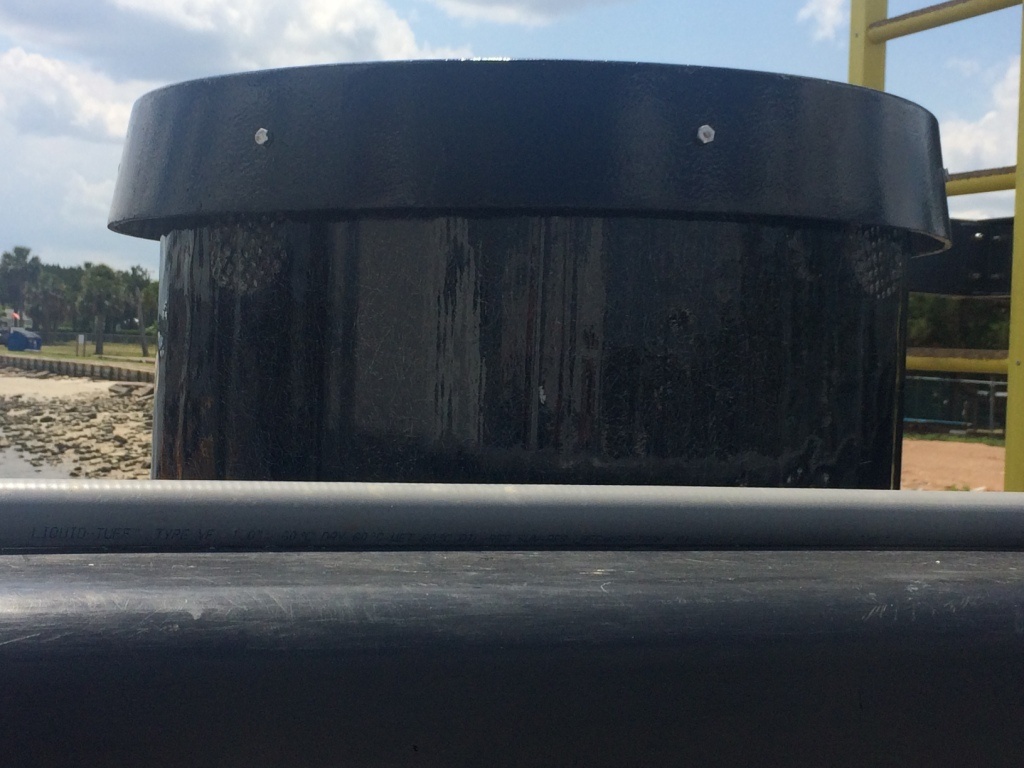

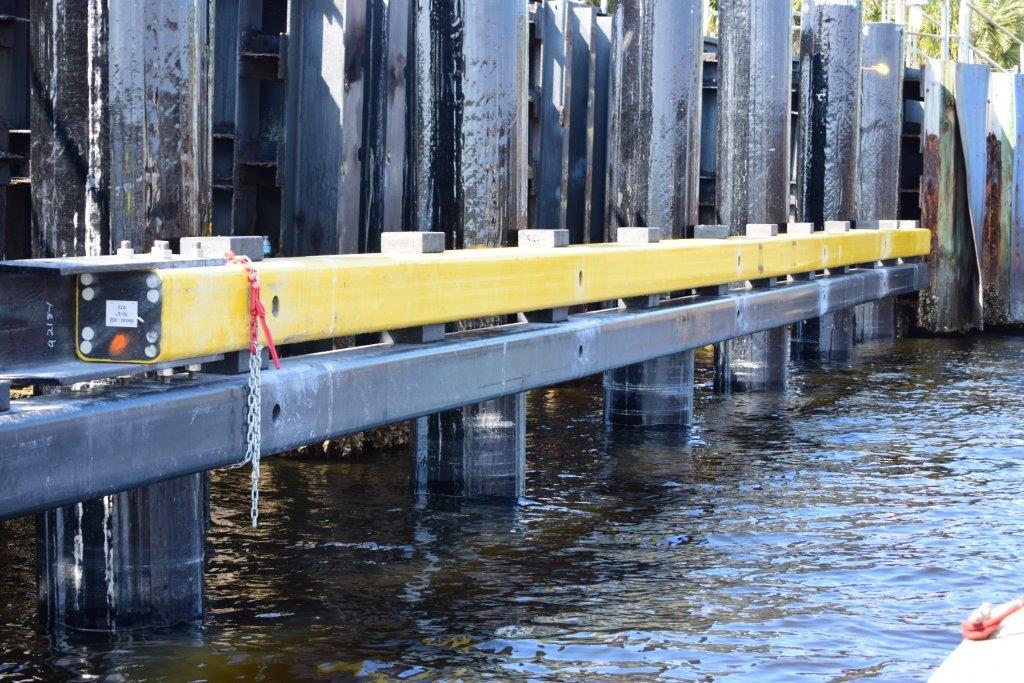

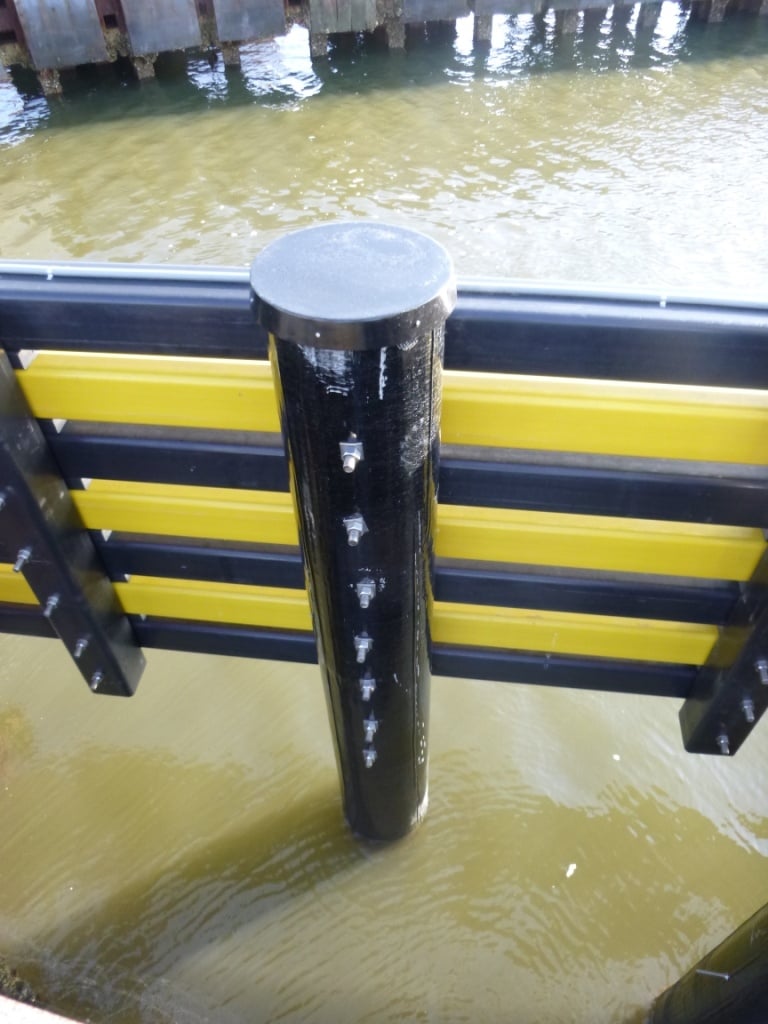

FiberPILES are driven into hard soils including wood piles from previous installations. The horizontal wales are composite timbers bolted to the piles and distribute impact loads to the piles. FRP channels splice the sections of timber together. Caps cover the hollow piles and become the base for navigation lights.

In summary, benefits of FRP waterfront protection systems constructed with pipe piles include high strength, superior energy absorption, low driving friction, dimensional stability and high impact resistance.

Project Details

PILING COUNT:

48 (Phase 1), 40 (Phase 2)


PILING DIAMETERS:

24 and 36 in


PILING LENGTH:

60 to 100 ft


PILING WALL THICKNESS:

1, 1.25 and 1.5 in


INSTALLATION METHOD:

Vibration hammer


WALE TYPE:

Reinforced plastic lumber


WALE SPLICES:

FRP C-channel


SPECIAL REQUIREMENTS:

Superior energy absorption

No maintenance

Corrosion resistance

Stability in high winds and currents

Recoverable deflection

Low driving friction


OWNER:

Jacksonville Transportation Authority


INSTALLATION DATE:

March 2016, March 2017


ENGINEER OF RECORD:

Morales Consulting Engineers


CONTRACTOR:

C&D Construction, Inc.
