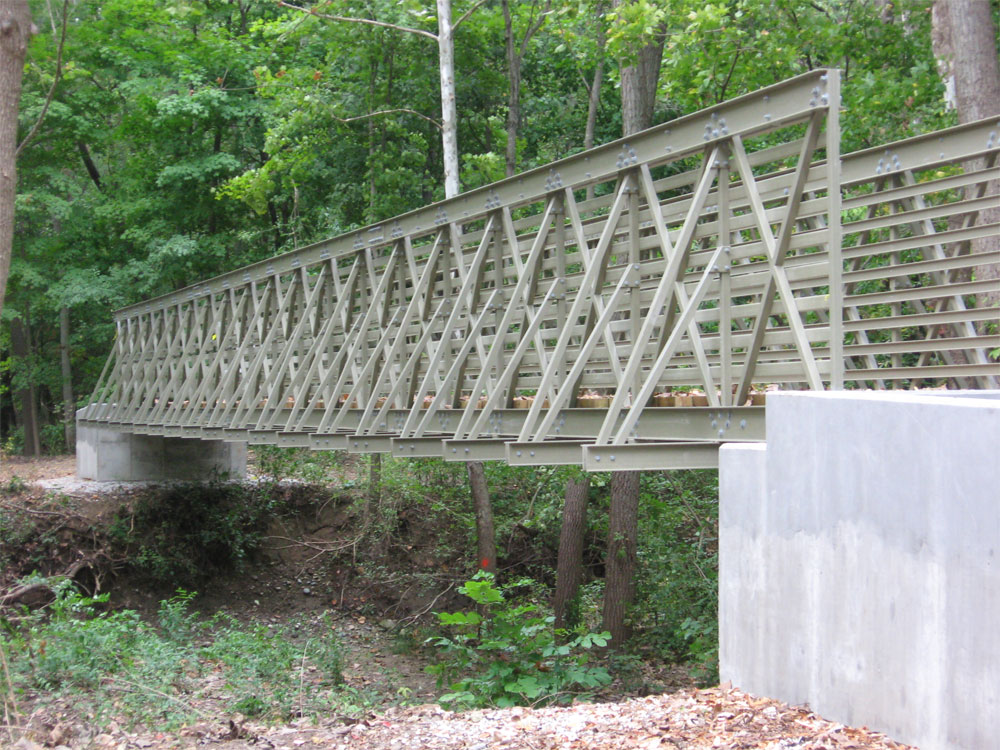

Location: Indianapolis, IN
Type: Straight End
Span: 100'-0" x 6'-0"


Design Specifications:

  • Pedestrian bridge
  • Design live load = 60 psf
  • Fiberglass support trusses (two diagonals/panel)
  • 66" handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 4" max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Creative Pultrusions, Inc. Series 1500 Olive Green color
  • Galvanized steel mounting clips
  • 3" x 12" #2 pressure treated Southern Yellow Pine decking
  • Components shipped unassembled
