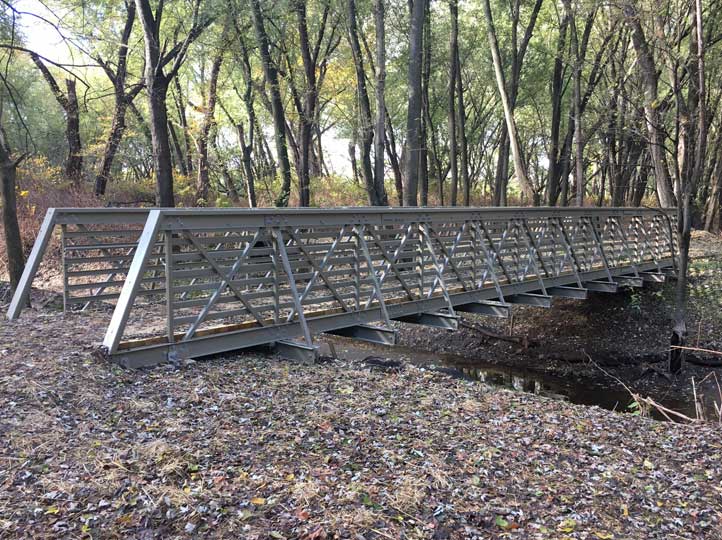

Location: Woodward, PA

Type: Sloped End

Span: 60'-0" x 4'-5"

Design Specifications:

  • Pedestrian/maintenance equipment bridge
  • Design live load = 85.0 psf/ maintenance equipment (10,000.0 lbs.)
  • Fiberglass support trusses (x-brace/panel)
  • 54" handrail height above decking
  • Sloped end design
  • Horizontal safety midrails providing 9" max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Galvanized steel mounting clips
  • 3" x 12' #2 pressure treated Southern Yellow Pine decking (ADA 1/2" max. gap)
  • Components shipped unassembled
