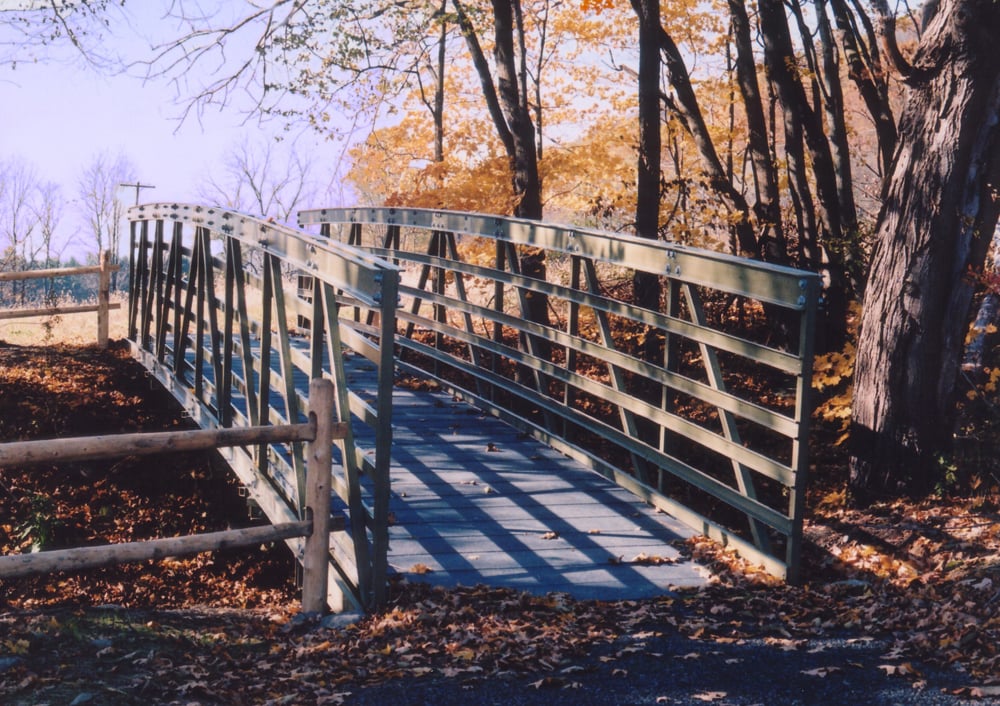

McDade Trail 40' - Bushkill, PA

Location: Bushkill, PA

Project: Straight End

Span: 40'-0" x 6'-0"

Design Specifications:

• Pedestrian/bicycle/maintenance equipment bridge
• Design live load = 85 psf/maintenance equipment (5000 lbs.)
• Fiberglass support trusses (one diagonal/panel)
• 54” handrail height above decking
• Straight end design
• Horizontal safety midrails providing 9” max. opening
• A307 galvanized steel bolts
• 1% custom camber
• Creative Pultrusions, Inc. Series 1500 Olive Green color
• Galvanized steel mounting clips
• Structural plastic lumber (Trimax)
• Trusses shipped assembled/other components unassembled
