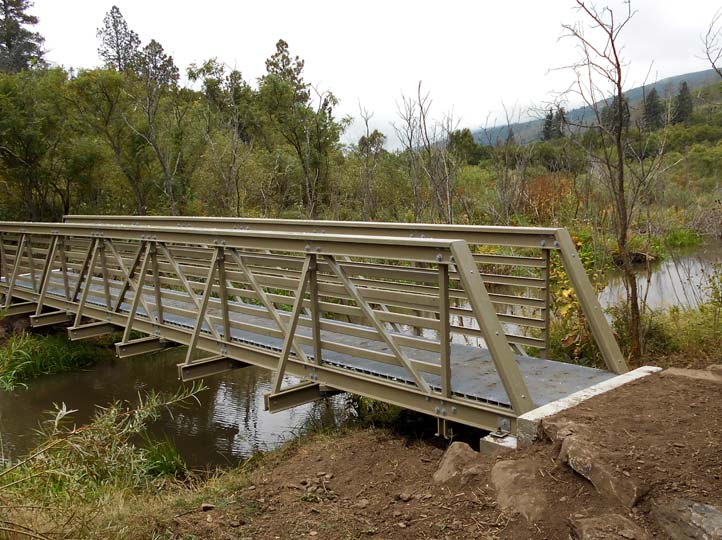

Location: Albuquerque, NM

Type: Sloped End

Span: 40'-4" x 3'-5"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 85.0 psf
  • Fiberglass support trusses (one diagonal/panel, x-brace at center panel)
  • 42” handrail height above decking
  • Sloped end design
  • Horizontal safety midrails providing 9” max. opening
  • A307 galvanized steel bolts
  • Standard dead load camber
  • Galvanized steel mounting clips
  • FRP composite deck

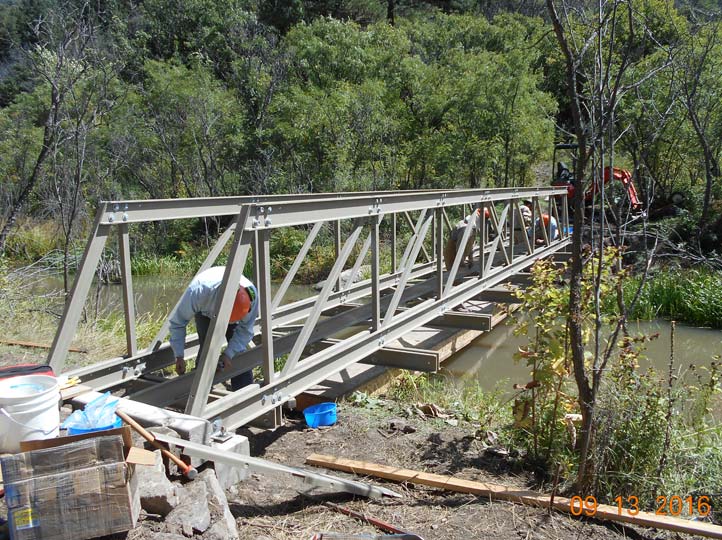

  • Components shipped unassembled
