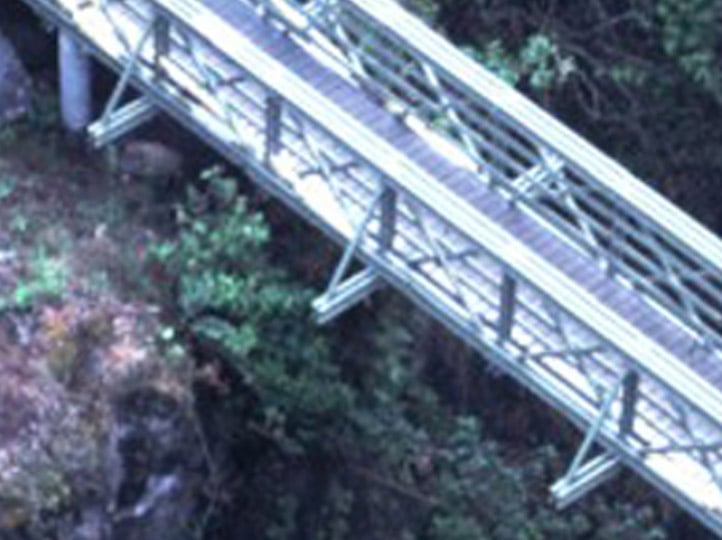

Location: Hana, HI

Type: Specialty

Span: 80’-0" x 4’-0"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 60 psf
  • Fiberglass support trusses (two diagonals spaced apart/panel)
  • Triple beam top and bottom chord system
  • Intermediate support diagonals
  • 42” handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 9” max. opening
  • Stainless steel bolts
  • Standard dead load camber
  • Standard green color/yellow intermediate support diagonals
  • Stainless steel mounting clips
  • Trex® decking
  • Components shipped unassembled
