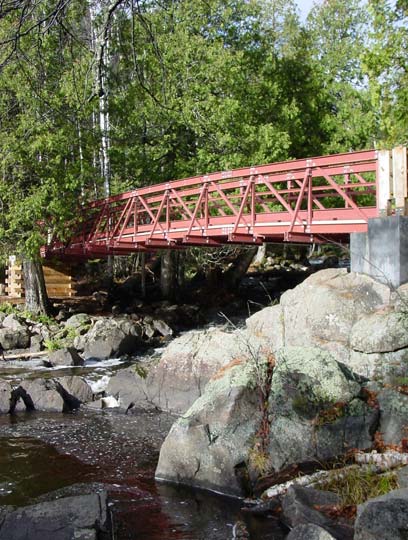

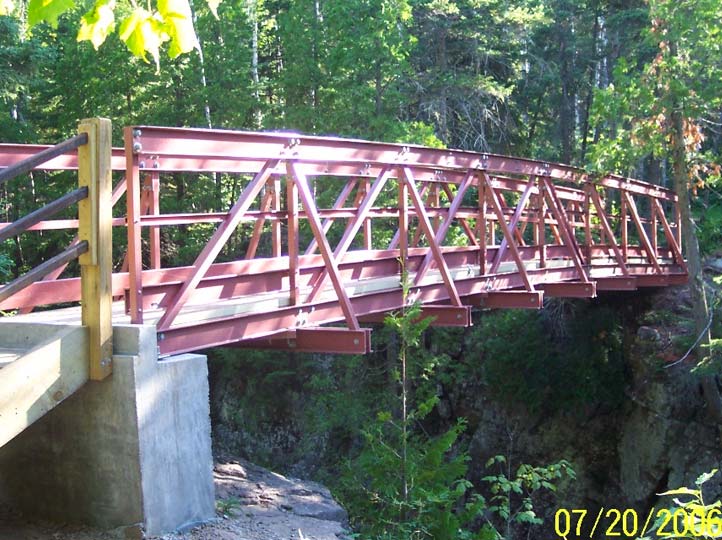

Location: Tettegouche State Park - Silver Bay, MN

Type: Straight End

Span: 50'-0" x 3'-0"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 85 psf
  • Fiberglass support trusses (one diagonal/panel)
  • 42"handrail height above decking
  • Straight end design
  • One horizontal safety midrail
  • 6" toeplate
  • A307 galvanized steel bolts
  • 1% custom camber
  • Custom iron oxide red color
  • Galvanized steel mounting clips
  • FRP composite deck/custom beige color
  • Components shipped unassembled
