Location: Narragansett, Rhode Island

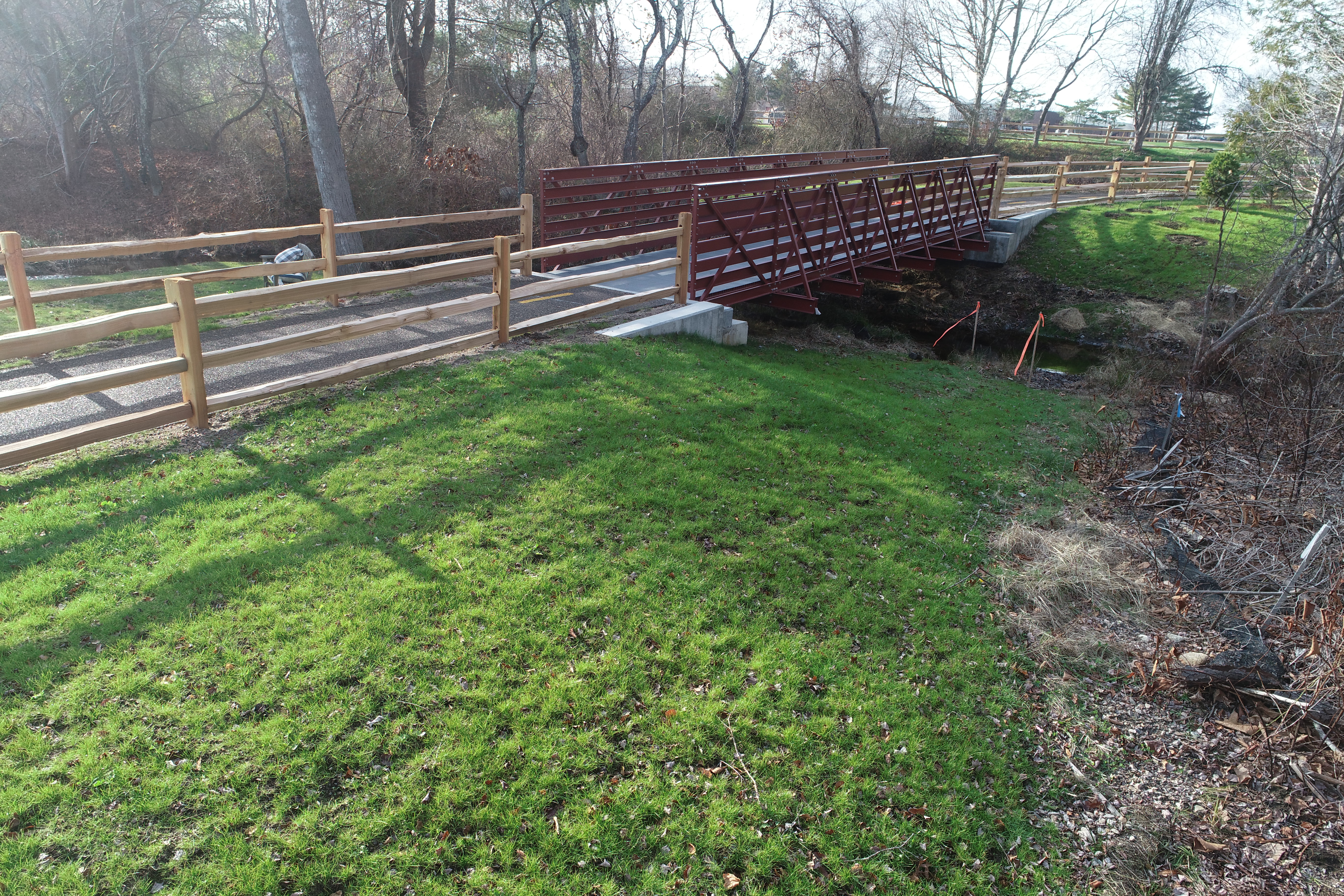

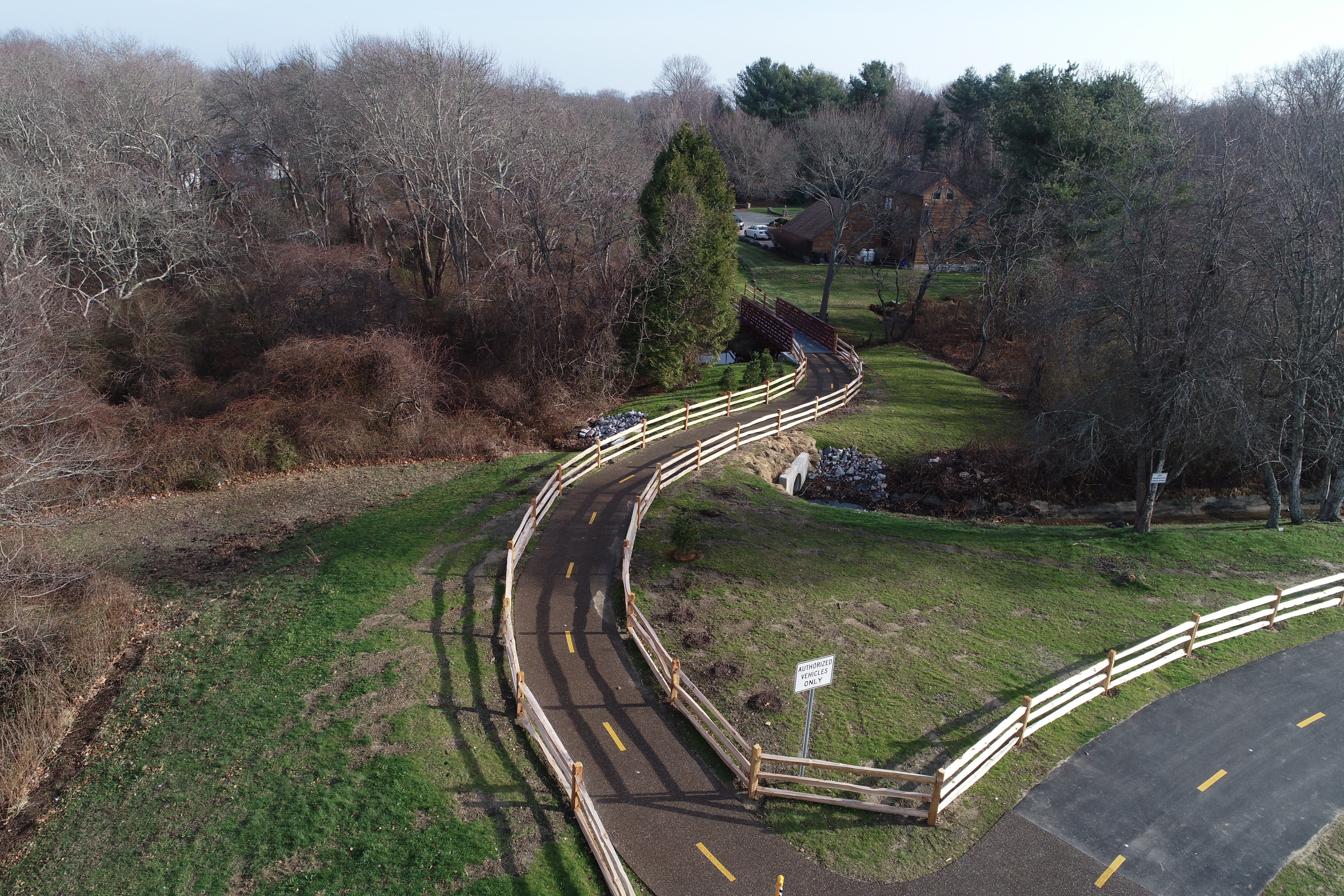

Project: Custom FRP Pedestrian Bridge
Product: Pedestrian Bridge

Overview: This pedestrian bridge was design to provide students a safe and straightforward route to school. The custom color was chosen to match the primary color of the surrounding school district.


Design Specifications:

  • Pedestrian bridge
  • Span - 37'-6'' x 8'
  • Series 1525 Fire Retardant Resin
  • Fiberglass support trusses w/ X-bracing
  • 66" high handrail
  • Straight end design
  • Standard top cap with solid color matched coating
  • Safety mid-rails (per ADA specifications, 3-3/4" max. spacing)
  • Standard A307 galvanized steel hardware
  • Standard dead load camber design
  • Galvanized steel mounting clips
  • Heavy Duty Plank CP604 (IFR) Decking w/ Anti-Skid & Deck Screws
