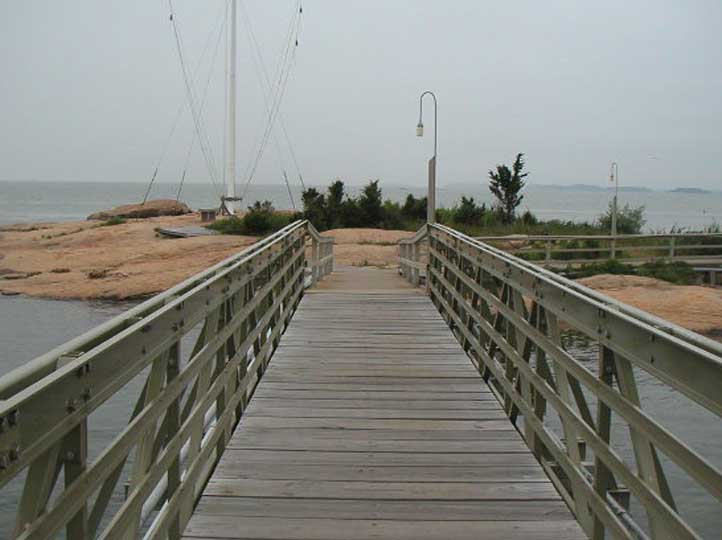

Location: Guilford, CT

Type: Straight End

Span: 54’-0" x 6’-0"

Design Specifications:

  • Pedestrian bridge
  • Design live load = 85 psf
  • Fiberglass support trusses (one diagonal/panel)
  • 42” handrail height above decking
  • Straight end design
  • Horizontal safety midrails providing 9” max. opening
  • Stainless steel bolts
  • Standard dead load camber
  • Creative Pultrusions, Inc. Series 1500 Olive Green color with urethane clear coat finish
  • Galvanized steel mounting clips
  • 3”x12” #2 pressure treated Southern Yellow Pine decking
  • Shipped assembled
